JAG - 608043.05 - Hedger Drive Shaft Claas
JAG - 608043.05 - Hedger Drive Shaft Claas
JAG - 608043.05 - Hedger Drive Shaft Claas
JAG - 608043.05 - Hedger Drive Shaft Claas
JAG - 608043.05 - Hedger Drive Shaft Claas
JAG - 608043.05 - Hedger Drive Shaft Claas
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

JAG - 608043.05 - Hedger Drive Shaft Claas

JAG - 608043.05 - Hedger Drive Shaft Claas

€113.73

(Excl. VAT)

Price

(Excl. VAT)

€113.73

Product Description

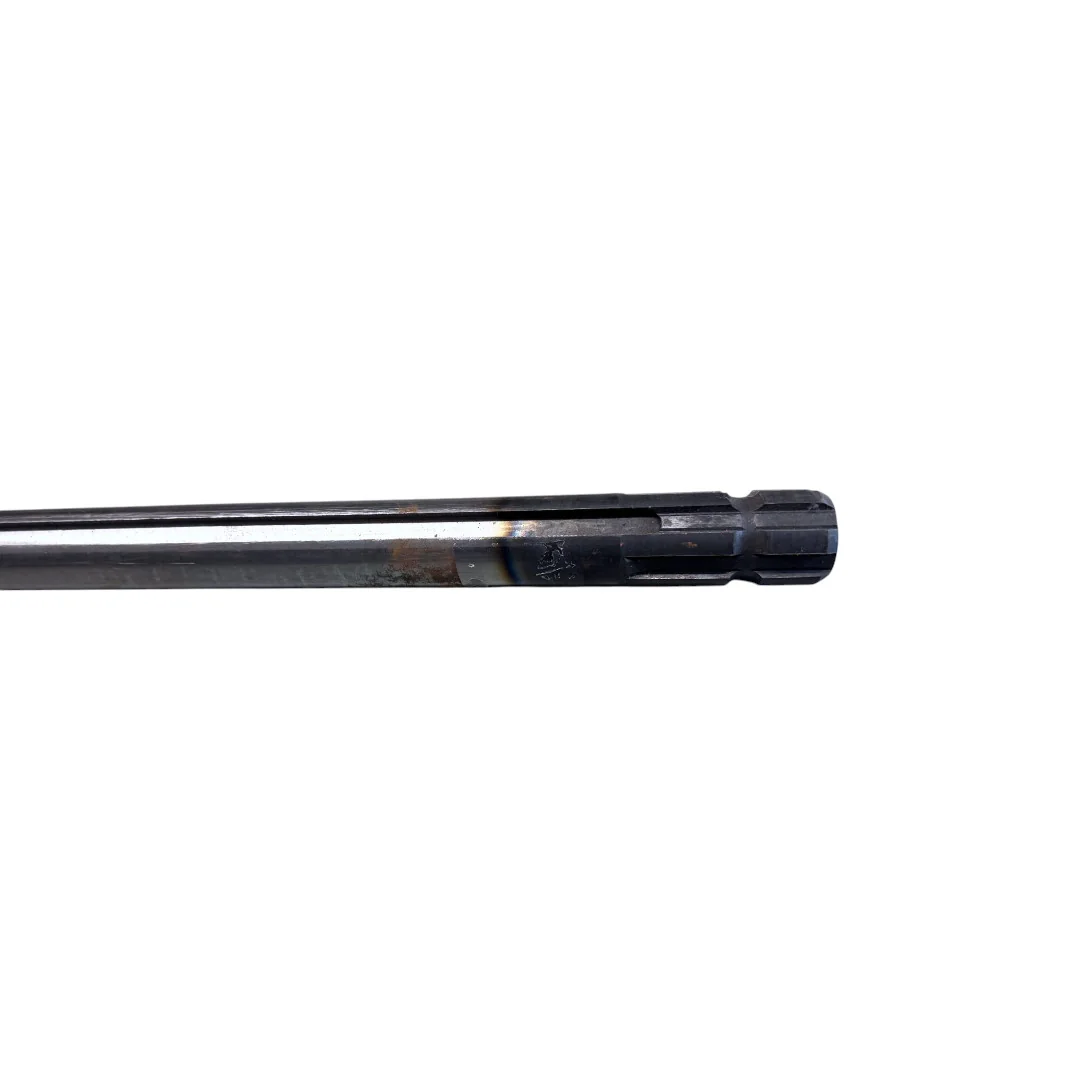

This driveshaft transmits torque from the combine's gearbox to the header auger and cutterbar drive. It is the primary mechanical link between the feeder housing and the header assembly; the splined ends engage with matching couplers at both the machine side and the header input. A worn or bent shaft causes vibration that accelerates bearing and seal wear in the driven components. The manufacturer machines the spline profiles to the same tolerances as the original assembly, so the shaft slides into the couplers without binding and maintains concentric rotation. On installation, ensure the shaft is fully seated in both couplers and that the retaining pins or bolts are torqued to specification.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Fits

Claas

Commandor 114Commandor 115Dominator 106Dominator 130Dominator 140Dominator 150Dominator 68Dominator 76Dominator 78Dominator 86Dominator 88Dominator 88 VXDominator 96Dominator 98Dominator 98 VXMedion 310Medion 320Medion 330Mega 202Mega 202 IIMega 203Mega 203 IIMega 204Mega 204 IITucano 430
Length
1930 mm
Location
Header
Application
Harvesting machines
Product Type
Shaft
Outer Diameter
35 mm
Number Of Splines
6
Manufacturer
JAG
