JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas

JAG - 643656.01 - Complete Gearbox Of The Mower Drive Claas

€579.48

(Excl. VAT)

Price

(Excl. VAT)

€579.48

Product Description

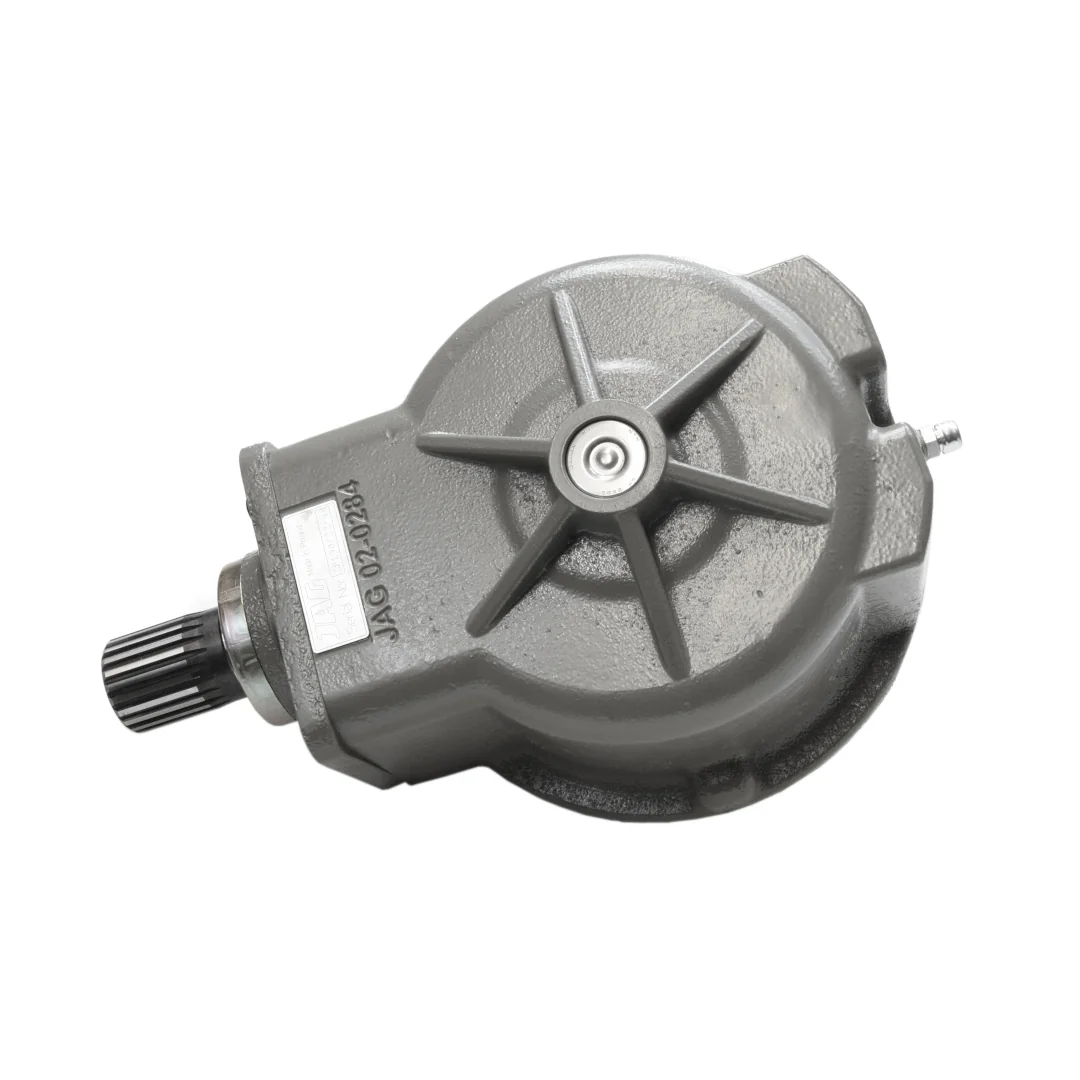

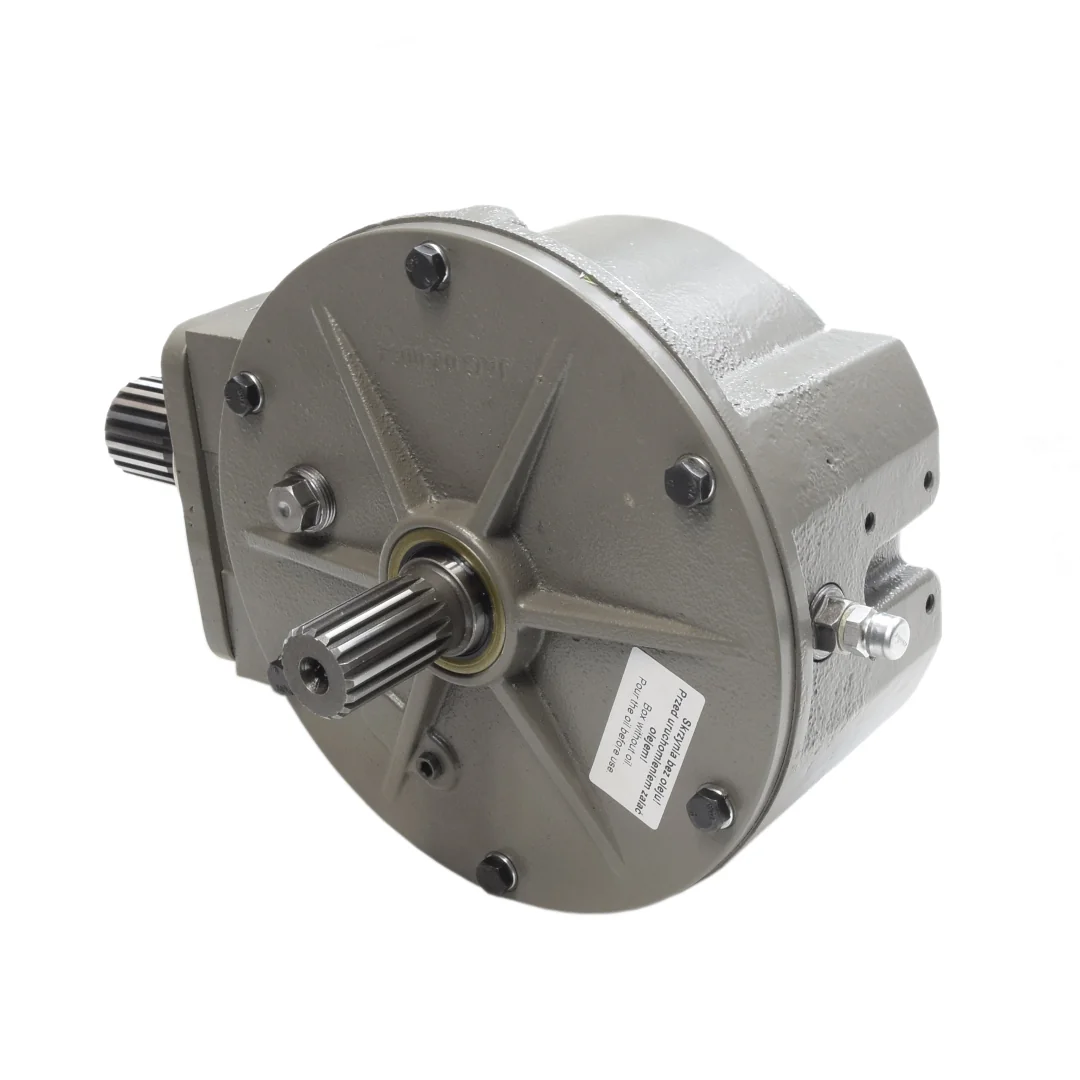

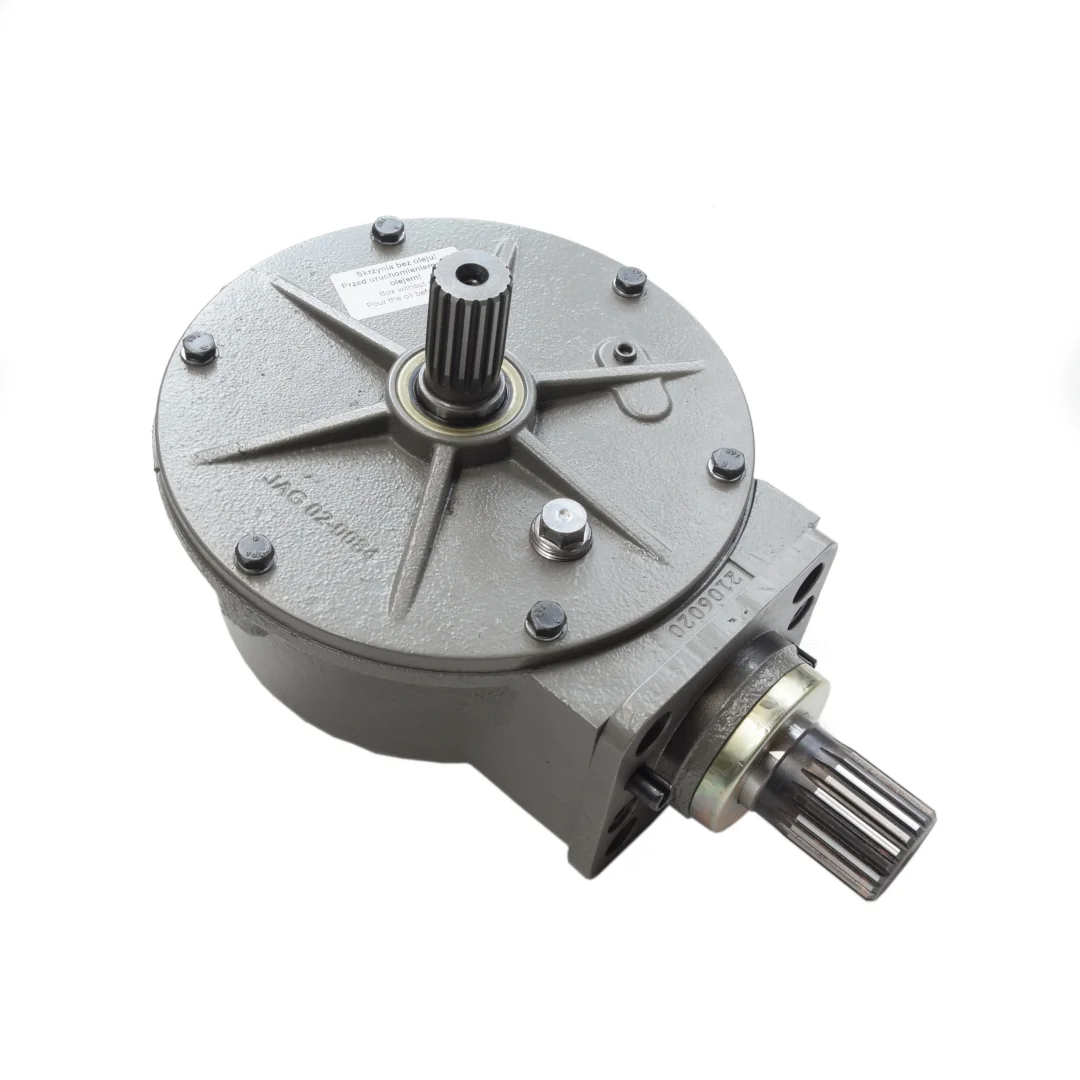

This complete gearbox assembly drives the cutterbar on a grain-harvester header. It replaces the original drive unit and mounts at the existing points without modification. The gearbox is specified for headers up to 6.6 meters in width. It uses ZVL ball bearings and NTN needle bearings to handle the loads of intensive harvesting. The housing and internal components are machined to match the original geometry, which keeps vibration low and maintains alignment of the knife-drive system. Before operation, fill the gearbox with 0.85 liters of SAE 85W-90 API-GL5 gear oil. The kit includes the housing, eccentric shaft, fork, bearings, seals, and mounting hardware needed for a complete replacement.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Fits

Claas

Commandor 114Commandor 115Commandor 116Commandor 228Dominator 108Dominator 118Dominator 68Dominator 78Dominator 88Dominator 98Mega 202Mega 202 IIMega 203Mega 203 IIMega 204Mega 204 IIMega 208Mega 208 IIMega 218Mega 218 IIC300-C450 DominatorC300-C900 Dominator/Lexion/Medion/Mega/TucanoC370-C490 Lexion/TucanoC390-C900 LexionC450 Dominator/Medion/Mega (folding)C450-C540 Lexion (folding)C450-C750 Dominastor/LexionC450-C900 LexionS450-S900 Soybean Dominator/Lexion/Medion/Mega/TucanoV540-1050 Vario Lexion/TucanoV540-900 Vario Lexion

Massey ferguson

727872767274727272567254725272507242303234363840Powerflow 5.48mPowerflow 6.09mPowerflow 6.70m

Fendt

5180522052505250L6280633083008350

Case ih

D9000
Location
Cutterbar drive
Application
Harvesting machines
Kit Includes

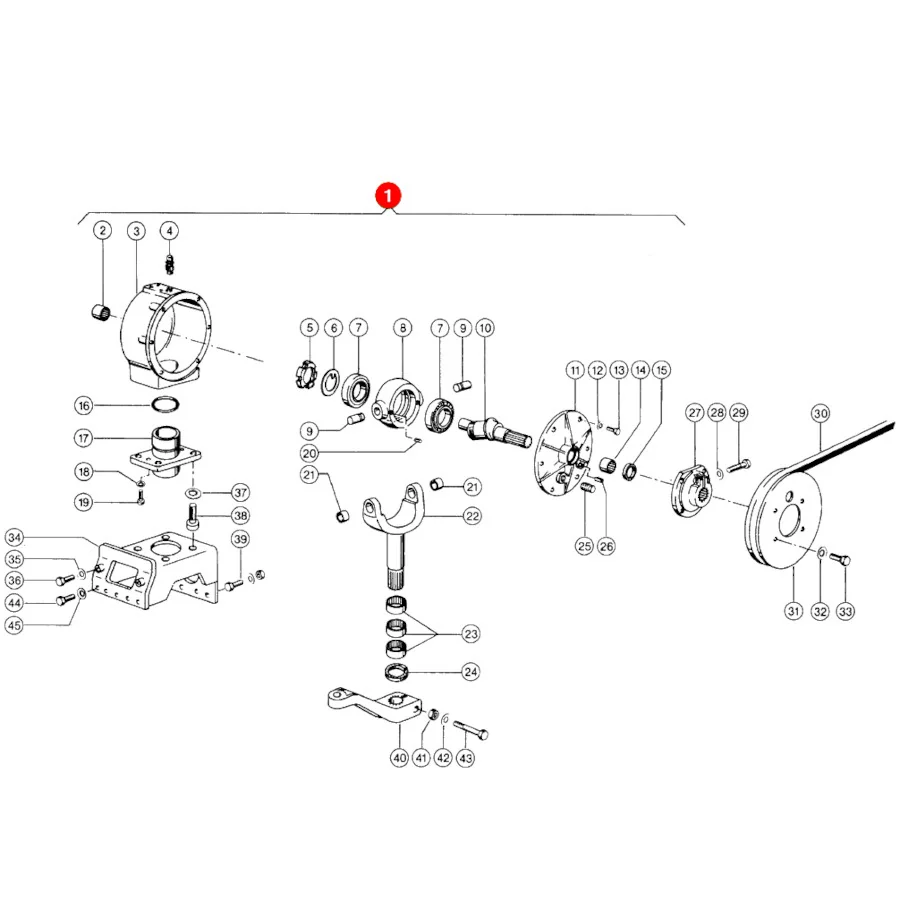

2x Bearing (000238640), 2x Pin (0006434040), 2x Bushing (0006436280), 3x Bearing (0002153370), 6x Washer (0002351321), 6x Bolt (0002374410), Pin (0002425900), Magnetic plug (0006354230), Bearing (0002344910), Bearing (0002386240), Nut (0006499900), Housing (0006436601), Bearing housing (0006436591), Oscillating housing (0006434020), Breather (0007126600), Ring (0002153530), Seal ring (0002153380), Seal ring (0002383480), Washer (0006499910), Cover (0006436581), Closing screw (0000901201), Eccentric shaft (0006499890), Fork (0006434031)
EAN
2014803069285
Manufacturer
JAG
