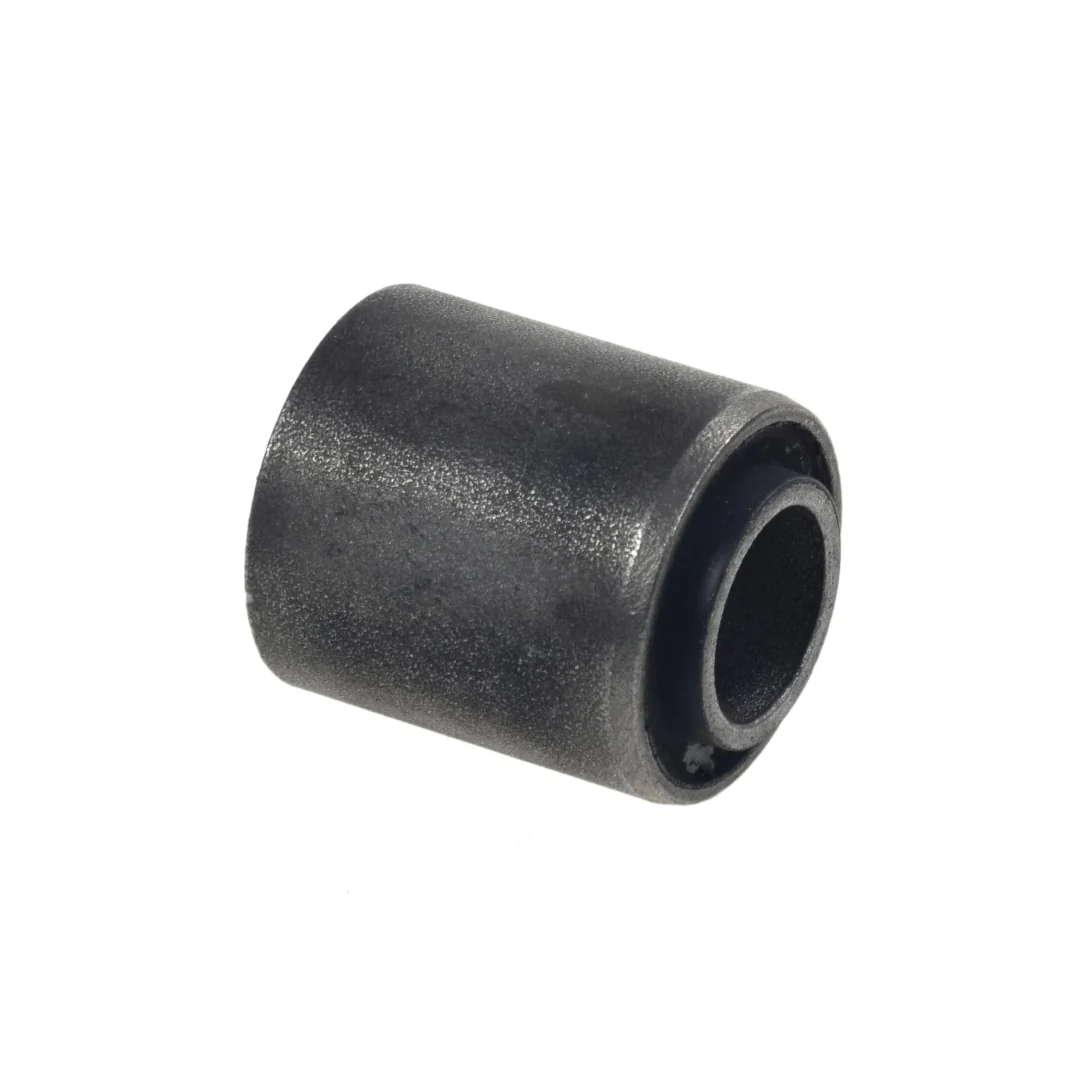

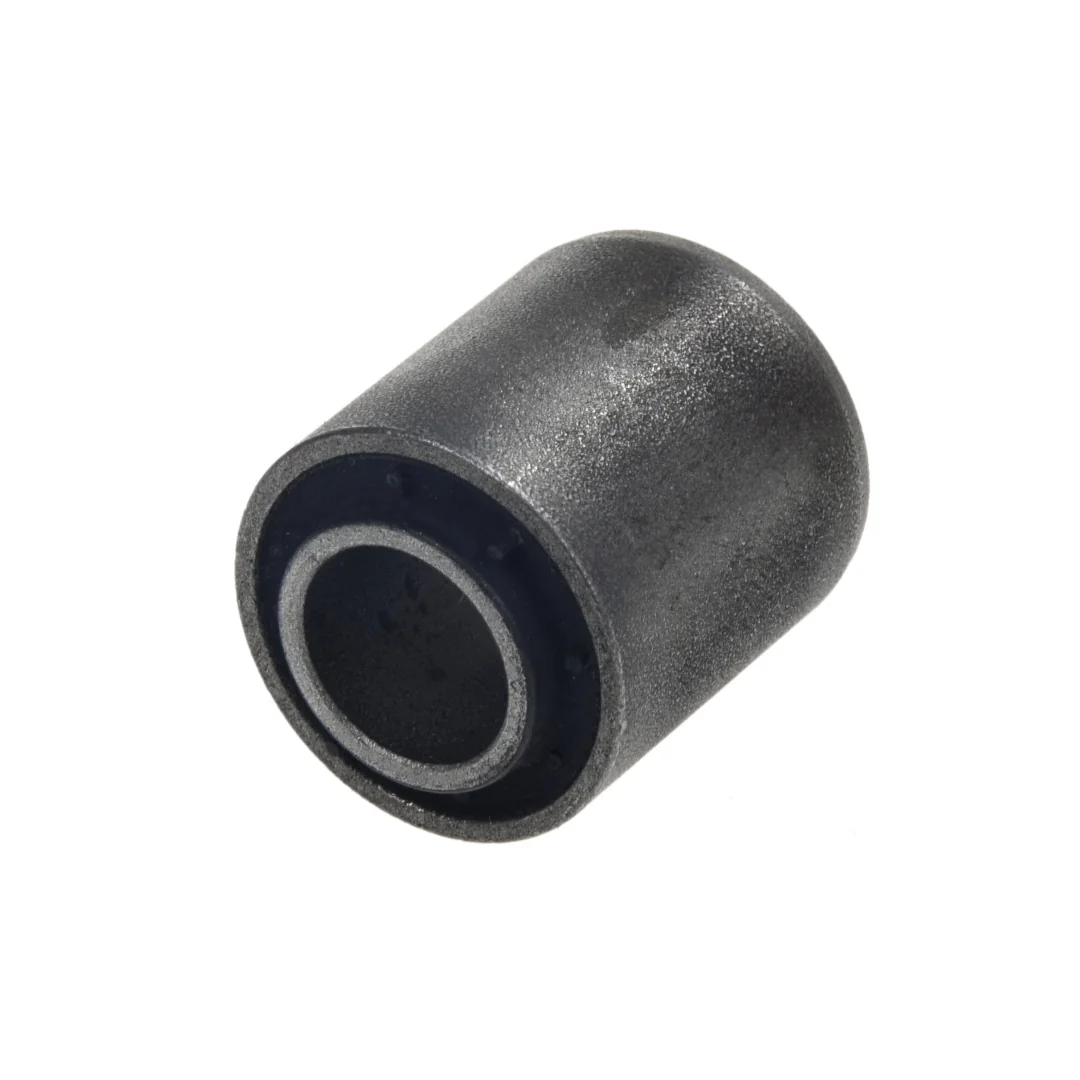

JAG - 647465.0 - Claas Reinforced Metal-Rubber Bushing
SKU: jag-647465-0





€12.64
(excl. VAT)In stock - ready to ship
Ships within 48 hours
Free shipping on orders over €60
Pay Securely with

JAG - 647465.0 - Claas Reinforced Metal-Rubber Bushing
€12.64
(Excl. VAT)
Price
(Excl. VAT)
€12.64
This reinforced metal-rubber bushing absorbs vibration and dampens movement at the pivot points of the straw-walker assembly. It sits between the walker frame and its mounting bracket, isolating metal-to-metal contact that would otherwise accelerate wear. A worn bushing allows excessive play in the walker linkage, which leads to uneven shaking motion and reduced separation efficiency. The metal insert provides a rigid inner bore for the mounting bolt, while the rubber layer compresses to accommodate angular misalignment during operation. On reinstall, ensure the bushing is fully seated in its bore and that the mounting bolt is torqued to the specification for that joint.
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments.
The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance.
At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao.
Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.
Product Details
Brand
Fits
Claas
Height
42 mm
Location
Straw walkers
Intended Use
Harvesting machines
Product Type
Bushing
Inner Diameter
18 mm
Outer Diameter
34 mm
Manufacturer
JAG
Be the first to write a review!
