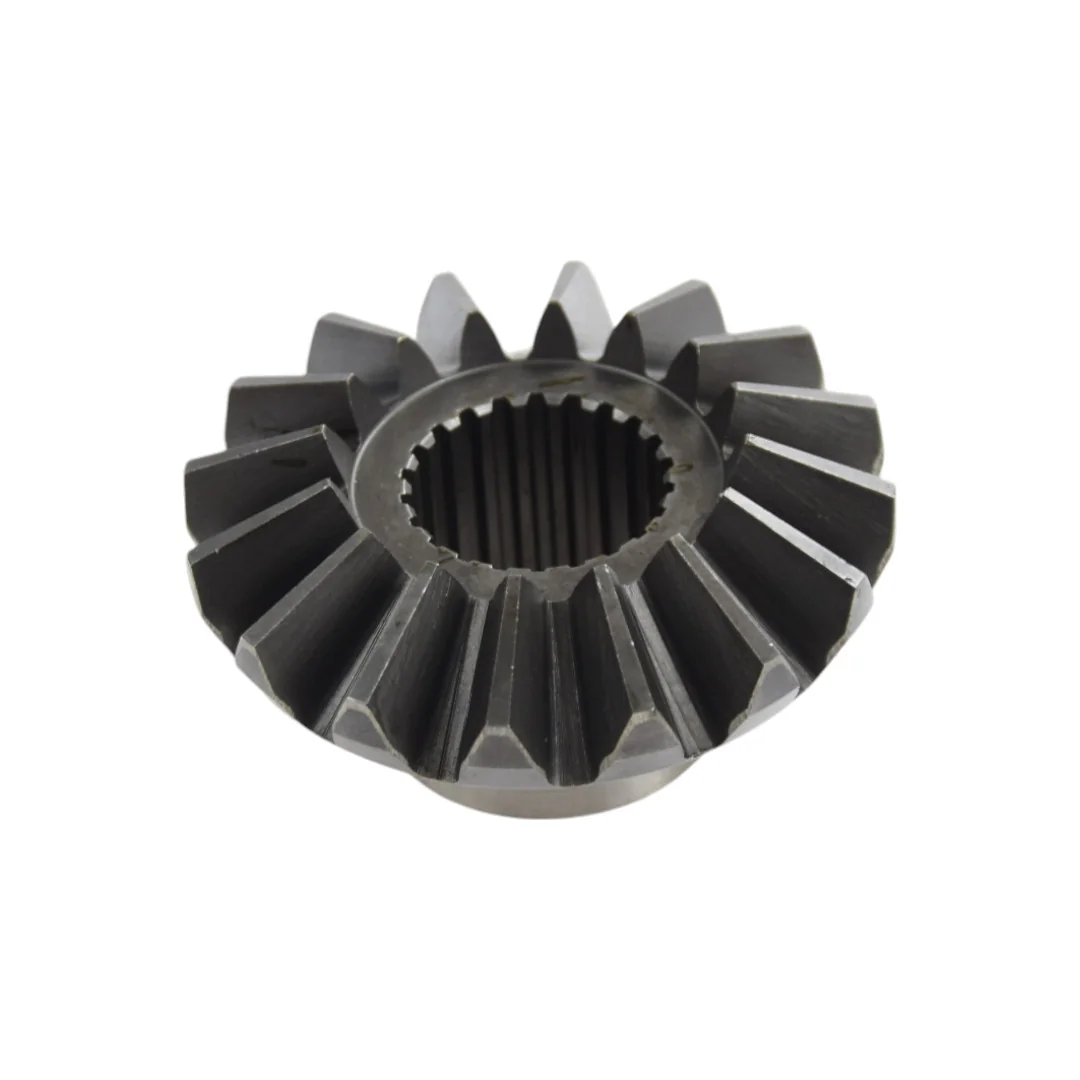

JAG - 735888.02 - Gear Wheel Claas
JAG - 735888.02 - Gear Wheel Claas
JAG - 735888.02 - Gear Wheel Claas
JAG - 735888.02 - Gear Wheel Claas
JAG - 735888.02 - Gear Wheel Claas
JAG - 735888.02 - Gear Wheel Claas
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

JAG - 735888.02 - Gear Wheel Claas

JAG - 735888.02 - Gear Wheel Claas

€23.57

(Excl. VAT)

Price

(Excl. VAT)

€23.57

Product Description

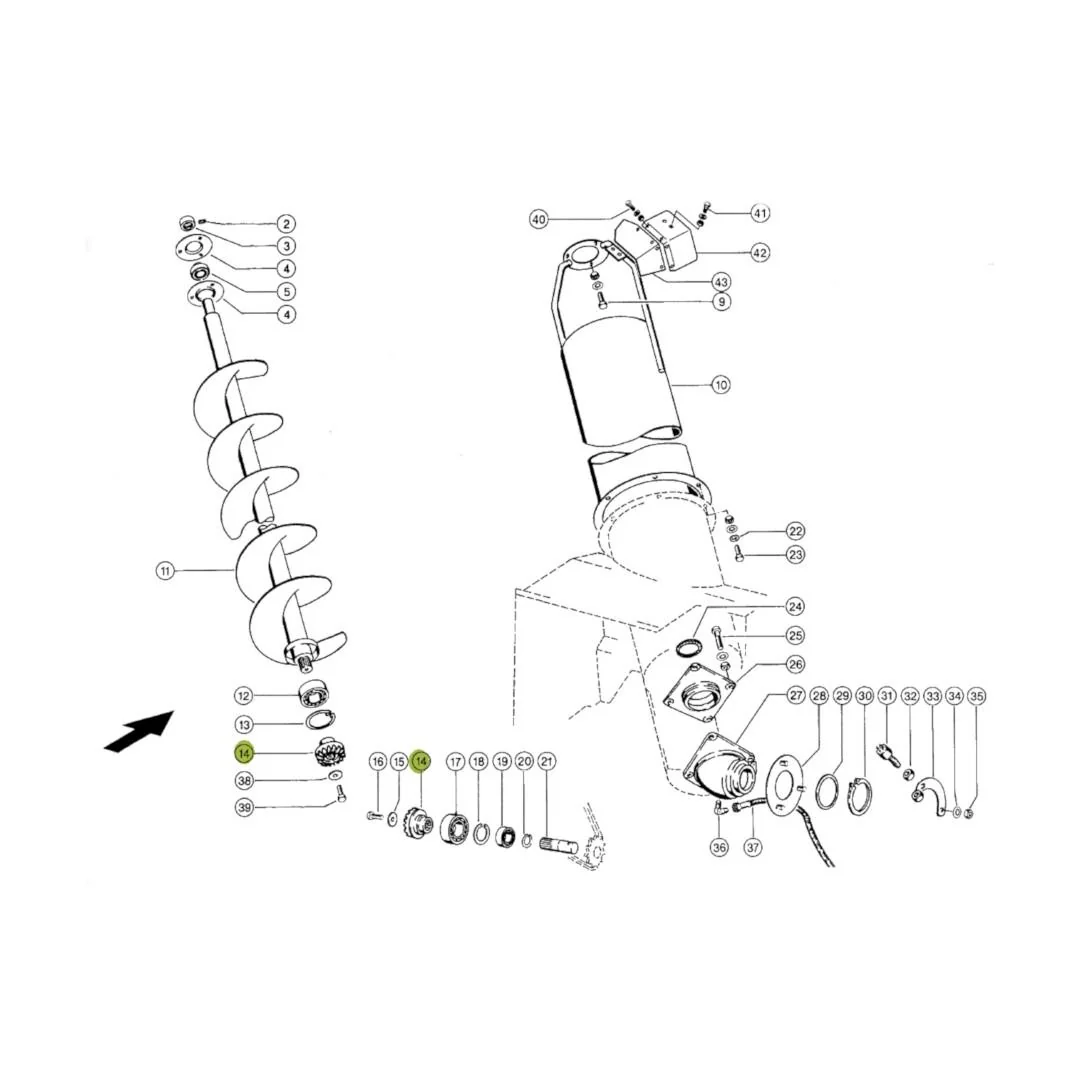

This gear is a drive component located inside the grain tank of a harvesting machine. It transmits rotational motion from the tank's unloading auger drive to the cross-feed mechanism that moves grain toward the discharge opening. The gear meshes with a matching pinion on the adjacent shaft; wear on the tooth flanks produces backlash that causes intermittent feeding and auger vibration. The manufacturer machines the gear to the original tooth profile and bore tolerance so it seats on the shaft without requiring shimming or rework. On installation, inspect the mating gear for wear and replace the retaining clip if it shows deformation.
Jag

Product Details

Brand
JAG
Fits

Claas

Lexion 405Lexion 410Lexion 415Lexion 420Lexion 430Lexion 440Lexion 450Lexion 460Lexion 465Lexion 470Lexion 475Lexion 480Lexion 485Lexion 510Lexion 520Lexion 530Lexion 540Lexion 550Lexion 560Lexion 570Lexion 580Lexion 585Lexion 640Lexion 650Lexion 660Lexion 670Lexion 730Lexion 740Lexion 750Lexion 760Tucano 320Tucano 330Tucano 340Tucano 420Tucano 430Tucano 440Tucano 450Tucano 460Tucano 470Tucano 480Tucano 550Tucano 560Tucano 570Tucano 580
Location
Grain tank
Application
Harvesting machines
Product Type
Gear
Inner Diameter
30 mm
Outer Diameter
79 mm
Number Of Teeth
16
Number Of Cutters
22
Manufacturer
JAG
