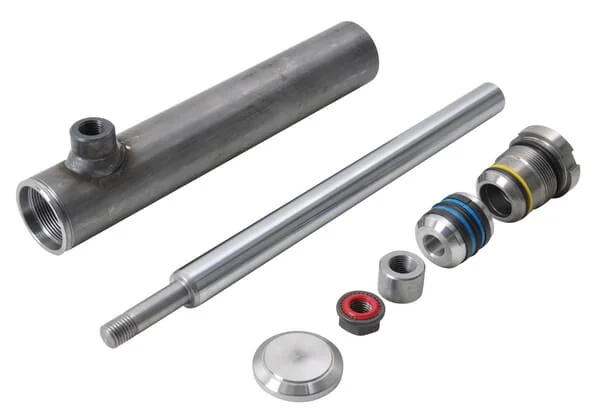

Kramp-d2030300 - Cylinder DIY D/A D20-30-300

OEM Quality

SKU: kramp-d2030300

Kramp-d2030300 - Cylinder DIY D/A D20-30-300

€59.95€51.24 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.95

Brand
Kramp
Part Numbers
d2030300
Pros
Cylinder can be adjusted to any required length. Simple assembly
Unit
Each
AStroke
300 mm
Includes
Complete self-assembly kit Assembly instructions Without fastenings
BMin. length
443 mm
Rod diameter
20 mm
Rod material
Steel 20MnV6
Inside diameter
30 mm
Product details
Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Nominal pressure
200 BAR
Cylinder material
Stainless steel 52.0
EOutside diameter
40 mm
Head nut material
Cast iron
Max. piston speed
0,1 m/s
Guide ring material
Plastic
Application category
Do it yourself
Max. working pressure
250 BAR
Rod surface roughness
0,2 µm
Rod surface treatment
Chromated
Oil connection material
Steel
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
No mounting
Oil connection inside diameter
20 mm
FCylinder end to rod end distance
47 mm
Mounting type - cylinder connection
No mounting
Cylinder material tolerance class code
H10
CMounting thread diameter - cylinder connection
1/4 Inch
HOil connection centre to cylinder end distance - rod side
44 mm
EAN
5700038821565
Manufacturer
Kramp

Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
