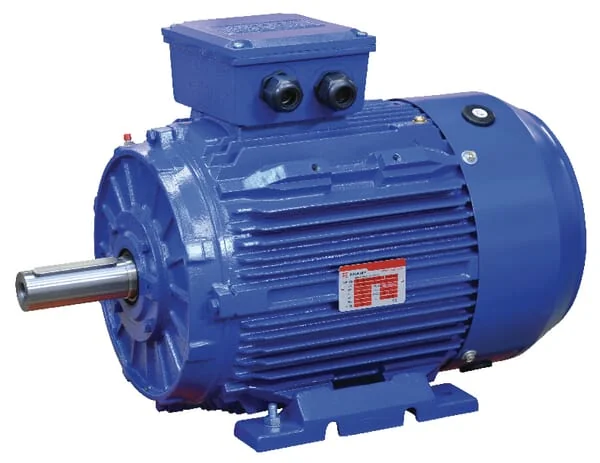

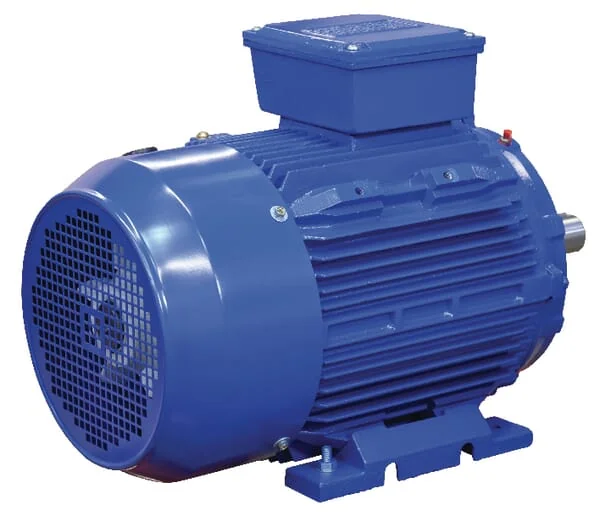

Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw

Kramp - EM160MB2B3500IE3G - Electric Motor 15 Kw

€940.85

(Excl. VAT)

Price

(Excl. VAT)

€940.85

Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,529 genuine Kramp spare parts.

Product Details

Brand
Kramp
In
25.89 A
N1
2918 r/min
PN
15 kW
FKey
12 mm
Unit
Each
Swivel
M32x1,5
Torque
48.72 N·m
Weight
128.0 kg
cos φ
0.91
Phase ~
3
Voltage
400/690V 50Hz V
Frequency
50 Hz
Noise level
86 dB(A)
EShaft length
110 mm
LTotal length
605 mm
DShaft diameter
42 mm
Material housing
Cast iron
KDiameter bore foot
15 mm
BBDiameter fan cover
313 mm
GHeight shaft with key
37 mm
Moments of inertia (kgm²)
0,0621 kg·m²
Power factor cos phi 100%
0,9
ADistance bore foot width side
254 mm
BDistance bore foot length side
210 mm
ABDistance outside foot width side
314 mm
HDistance underside foot till centre shaft
160 mm
RDistance center shaft to end terminal box
242 mm
CDistance front motor till center first mounting hole
108 mm
Manufacturer
Kramp
