Kramp - PV52B14 - Kramp 5/2 pneumatic valve 1/4" - PV52B14, 8716106824908

OEM Quality

SKU: kramp-pv52b14

Kramp - PV52B14 - Kramp 5/2 pneumatic valve 1/4" - PV52B14, 8716106824908

€54.09€46.23 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€54.09

Brand
Kramp
Part Numbers
PV52B14; 8716106824908
Bore
G 1/8
Type
Spool valve, bistable
Unit
Each
FBore F
4.2 mm
Nen Flow
1200 NI/min
ALength A
103 mm
Actuation
Pneumatically
CLength C
20.5 mm
DLength D
20 mm
HHeight H
40 mm
MHeight M
22 mm
Connection
G 1/4 BSP
TDistance T
7.5 mm
Installation
Free
Material seal
NBR
Mounting type
Through-bore
KBore diameter
3.1 mm
Material housing
Anodized aluminium, coated
Pilot pressure range
1 - 10 BAR
RHole center distance
13.2 mm
Working pressure max.
10 BAR
Working pressure min.
0 BAR
GDistance center to center
28 mm
EDistance for locating holes
45 mm
QCenter to center pressure side
22 mm
Distance center hole to right side
13 mm
ODistance center hole to left side
18 mm
JDistance mounting holes center to center
22 mm
Distance mounting holes center to center long side
13 mm
Distance mounting holes center to center short side
9 mm
LDistance mounting holes short side center to center
16.9 mm
EAN
8716106824908
Manufacturer
Kramp

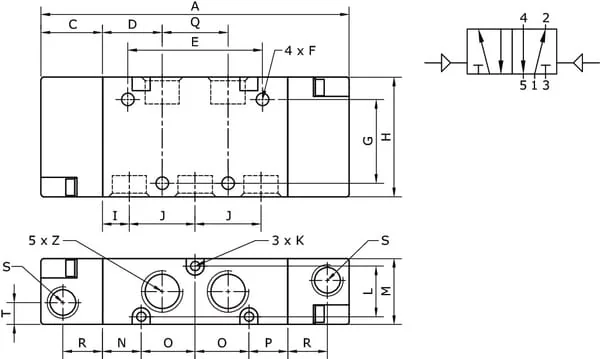

The Kramp 5/2 pneumatic valve 1/4" with part number PV52B14 is an aftermarket part made to OEM quality standards. It is a bistable slide valve with pneumatic actuation, G 1/4 BSP ports, and an anodized, coated aluminum housing with NBR seals.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
