Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

Kramp - SE121720 - SPROCKET 1/2X17Z 20MM

€4.41

(Excl. VAT)

Price

(Excl. VAT)

€4.41

Number of products

Kramp

Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,606 genuine Kramp spare parts.

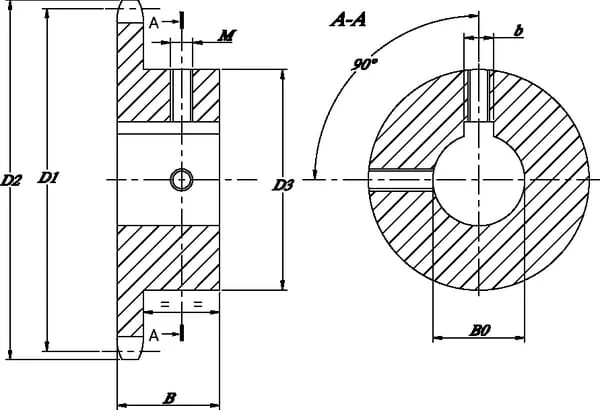

Product Details

Brand

Bore

Yes

Type

Simplex

Unit

Each

BWidth

28 mm

Details

Induction-hardened teeth (HRc45-55)

Benefits

Longer service life of chain and sprocket

Hub type

Hub one side

Material

Steel C45

Properties

Hub fit: H7 DIN 6885 keyway on the central tooth line Threaded hole on key and at 90°

bKey width

6 mm

Consists of

Sprocket 2 adjusting screws

Teeth width

7,2 mm

D3Hub diameter

52 mm

Technical info

For chain type 08B1

B0Bore diameter

20 mm

Chain size code

08 B-1

Number of teeth

17

D1Pitch diameter

69,11 mm

Long description

Finished bore sprockets DIN 8187 simplex 1/2" x 5/16"

D2Outside diameter

74 mm

Teeth hardness range

HRC 45-55

MLocking thread diameter

M5

Manufacturer

Kramp
