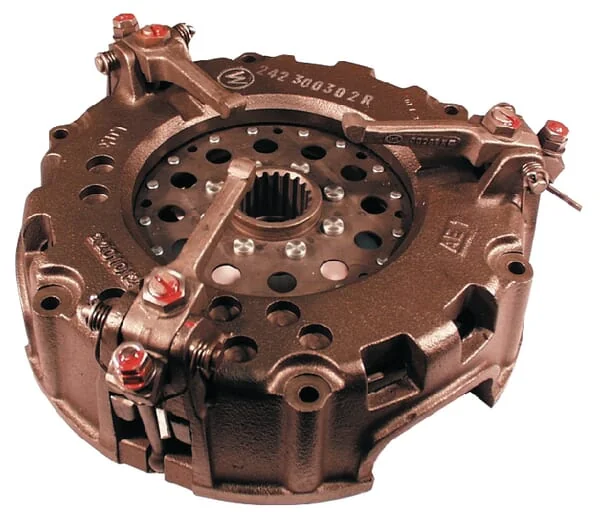

LuK - 223000711 - PRESSURE PLATE

OEM Supplier

SKU: luk-223000711

LuK - 223000711 - PRESSURE PLATE

€876.35€749.02 (Excl. VAT)

RRP:€933.79
Save €57.43
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€876.35

Brand
Part Number
223000711
OEM Part Numbers

Massey Ferguson

Fits

Massey Ferguson

Type
TGA3
Unit
Each
Levers
Yes
Suitable for
Deutz
LuK type code
TGA 3
Technical info
SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Number of holes
6
Outside diameter
225 mm225 mm
Number of springs
1
Manufacturer

The LuK 223000711 is a high-quality pressure plate designed for agricultural machinery. This genuine LuK component ensures optimal clutch performance and durability. It is a critical part of the clutch system, facilitating smooth power transfer and engagement. This pressure plate is compatible with several Massey Ferguson tractor models, including the 135, 148, 165, 168, 175, 178, 185, 188, 265, 275, 285, 290, 565, 575, 590, 675, 690, and 698, as well as the 3050, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3125, 6160, 6170, 6180, 6190, 8110, 8120, 8130, 8140, 8150, 8160, 8210, 8220, 8240, 8250, 8260, and 8270. It also fits Massey Ferguson combines such as the 850, 855, 860, and 865, and industrial models like the 50B, 50HX, 60H, and 60HX. This pressure plate is a direct replacement for several OEM part numbers, including Massey Ferguson 1867191M91, 1867192M91, 3300028M91, 3300028M92, 3300028M93, 3300028M94, 3300028M95, 3300028M96, 3300028M97, 3300028M98, 3300028M99, 3300029M91, 3300029M92, 3300029M93, 3300029M94, 3300029M95, 3300029M96, 3300029M97, 3300029M98, 3300029M99, 3300030M91, 3300030M92, 3300030M93, 3300030M94, 3300030M95, 3300030M96, 3300030M97, 3300030M98, 3300030M99, and 3300031M91.
LuK
LuK (Lamellen und Kupplungsbau) was founded in 1965 in Bühl, Germany, by the Schaeffler brothers, Georg and Wilhelm. The company quickly established itself as a leading manufacturer of clutch systems and components. Today, LuK operates as a brand under the Schaeffler Group, a global automotive and industrial supplier, renowned for its precision components and systems in engine, transmission, and chassis applications. LuK is particularly known for its innovative clutch technologies, including dual-mass flywheels (DMF) and self-adjusting clutches (SAC). These advanced solutions are designed to enhance driving comfort, reduce fuel consumption, and improve the lifespan of the drivetrain. The brand's product range extends to complete clutch kits, clutch discs, pressure plates, and release bearings, catering to a wide array of vehicles, from passenger cars to heavy-duty agricultural machinery. Partao offers a comprehensive selection of genuine LuK spare parts, including top categories such as Complete Clutch Kits, Ball Bearings, Belt Tensioners, Clutch Discs, and Differentials. Equipment operators worldwide value LuK components for their reliability and performance in demanding applications. The brand's engineering expertise ensures that its drivetrain solutions provide smooth power transmission and exceptional durability, making them a trusted choice for maintaining the operational efficiency of agricultural tractors and other heavy machinery. Shop more than 1,298 genuine LUK spare parts.
