Transmission, Drivetrain & Brakes

Pressure Plates

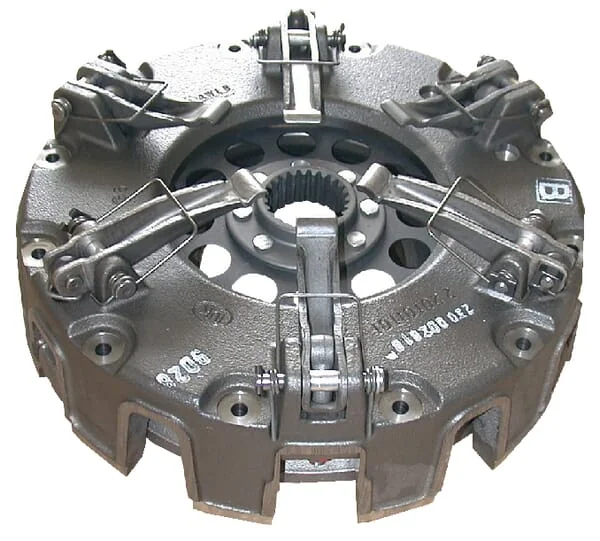

LuK - 230002810 - pressure plate

LuK - 230002810 - pressure plate

LuK - 230002810 - pressure plate

LuK - 230002810 - pressure plate

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

LuK - 230002810 - pressure plate

LuK - 230002810 - pressure plate

€436.59

(Excl. VAT)

Price

(Excl. VAT)

€436.59

Number of products

LUK

Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 349 genuine Luk spare parts.

Product Details

Brand

Part Numbers

230002810

OEM Part Numbers

Massey Ferguson

1868770M91 1868770M92 1868770M93 3539820M91 3539820M92 3539820M93

Fits

Massey Ferguson

1004 1004T 1014 1024 1080 1085 1100 1105 1114 1134 1200 133 135 140 145 148 152 155 158 165 168 175 178 185 188 230 235 240 245 250 255 260 265 275 285 290 298 3050 3060 3065 3070 3075 3080 3085 3090 3095 3115 3120 3125 362 3630 3645 365 3650 3655 3660 3670 3680 3690 375 390 390T 398 399 565 575 590 595 6120 6130 6140 6150 6160 6170 6180 6190 675 690 698 698T 699 8110 8120 8130 8140 8150 8160 8210 8220 8240 8250 8260 8270 8280

Type

TGU6

Unit

Each

Levers

Yes

Suitable for

Steyr

LuK type code

TGU 6

Technical info

SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers

Number of holes

12

Outside diameter

280 mm300 mm

Number of springs

1

Manufacturer

LuK
