Maintenance & Wear Parts

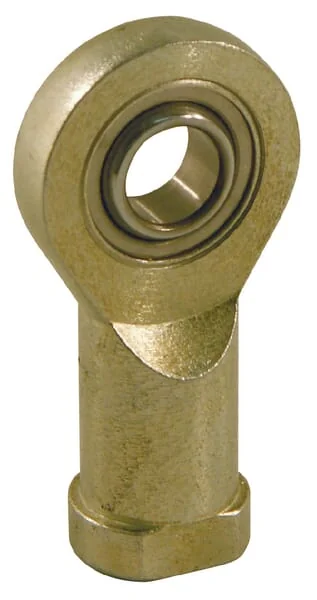

Mac Power - GIR12UK - Rod End

Mac Power - GIR12UK - Rod End

Mac Power - GIR12UK - Rod End

Mac Power - GIR12UK - Rod End

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

Mac Power - GIR12UK - Rod End

Mac Power - GIR12UK - Rod End

€8.86

(Excl. VAT)

Price

(Excl. VAT)

€8.86

Number of products

Product Details

Brand

Unit

Each

Properties

Maintenance-free Lubricated connection hard chrome/PTFE

BHole length

10 mm

Thread pitch

1.75 mm

ßEdge angle

11 °

L5Height base

6,5 mm

L4Total height

67 mm

dHole diameter

12 mm

L3Thread length

23 mm

D4Shaft diameter

17,5 mm

Thread direction

Right

Application range

Agricultural machines Cylinder Articulated points Suspension

D3Thread diameter

M12

Surface treatment

Zinc-plated

WBase outside diameter

19 mm

DBearing outside diameter

22 mm

C1Head width (hole length)

8 mm

L7Shaft to center distance

18 mm

D1Outside diameter of inner ring

14,9 mm

H1Hole centre to bottom distance

50 mm

Manufacturer

Mac Power
