Maintenance & Wear Parts

Mac Power - GIR20UK - Rod End

Mac Power - GIR20UK - Rod End

Mac Power - GIR20UK - Rod End

Mac Power - GIR20UK - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GIR20UK - Rod End

Mac Power - GIR20UK - Rod End

€13.58

(Excl. VAT)

Price

(Excl. VAT)

€13.58

Number of products

Product Details

Brand

Unit

Each

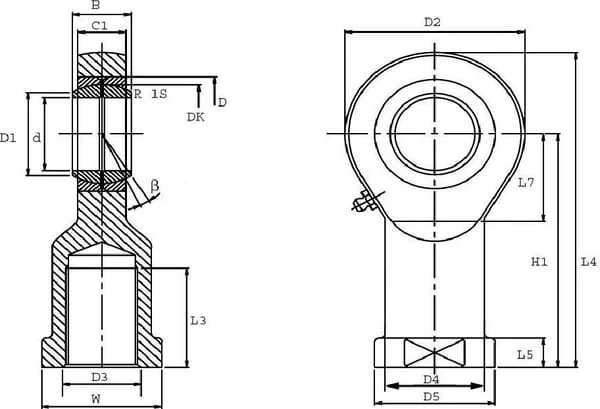

Properties

Maintenance-free Lubricated connection hard chrome/PTFE

BHole length

16 mm

Thread pitch

1.50 mm

ßEdge angle

9 °

L5Height base

10 mm

L4Total height

103,5 mm

dHole diameter

20 mm

L3Thread length

40 mm

D4Shaft diameter

27,5 mm

Thread direction

Right

Application range

Agricultural machines Cylinder Articulated points Suspension

D3Thread diameter

M20

Surface treatment

Zinc-plated

WBase outside diameter

32 mm

DBearing outside diameter

35 mm

C1Head width (hole length)

13 mm

L7Shaft to center distance

27 mm

D1Outside diameter of inner ring

24,1 mm

H1Hole centre to bottom distance

77 mm

Manufacturer

Mac Power
