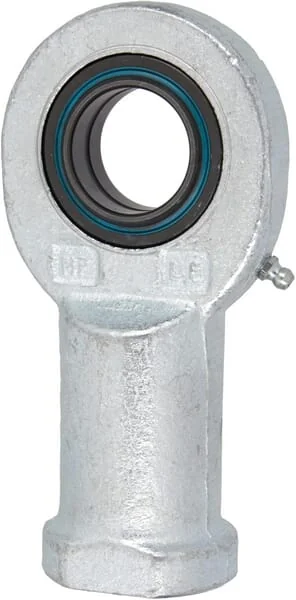

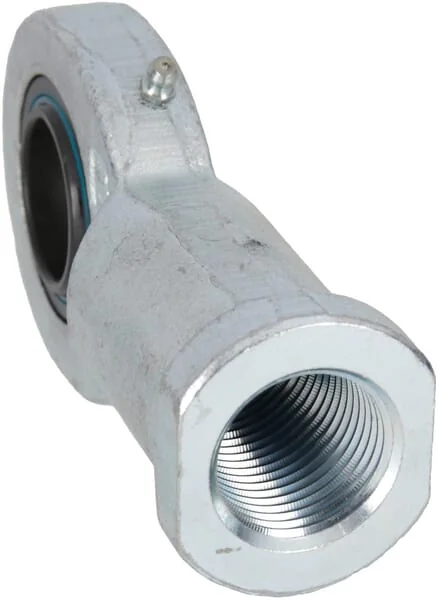

Mac Power - GIR35DO2RS - Rod End
Mac Power - GIR35DO2RS - Rod End
Mac Power - GIR35DO2RS - Rod End
Mac Power - GIR35DO2RS - Rod End
Mac Power - GIR35DO2RS - Rod End
Mac Power - GIR35DO2RS - Rod End

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Mac Power - GIR35DO2RS - Rod End

Mac Power - GIR35DO2RS - Rod End

€22.04

(Excl. VAT)

Price

(Excl. VAT)

€22.04

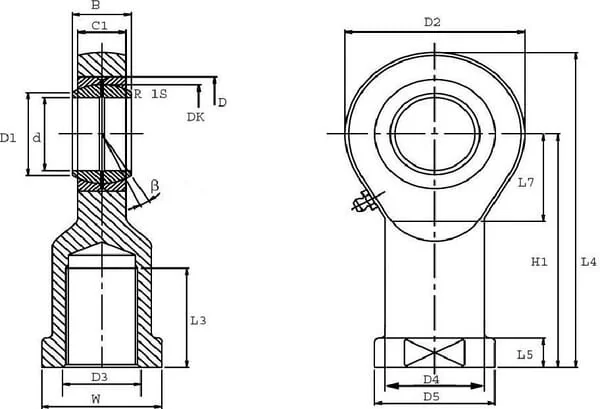

Product Details

Brand
Mac Power
B
25 mm
D
55 mm
C1
21 mm
D1
39.7 mm
D2
82 mm
D3
36 x 3 mm
b.
6 °
Type
Female thread
Unit
Each
Width
82 mm
Length
166 mm
Thread
M36x3
Diameter
5.000 mm
Hub Width
25 mm
Length L5
15 mm
Length L7
42 mm
Properties
Lip seal on both sides Requires maintenance Lubricated connection steel/steel
Diameter D4
47 mm
Edge degrees
6 °
Height house
21 mm
Hole diameter
35 mm
Thread length
60 mm
Inside diameter
35 mm
Outside diameter
55 mm
Thread direction
Right
Application range
Agricultural machines Cylinder Articulated points Suspension
Height inner ring
25 mm
Surface treatment
Zinc-plated
Outside diameter basis
50 mm
Outside diameter innerring
39.7 mm
Distance basis center shaft
125 mm
Manufacturer
Mac Power
