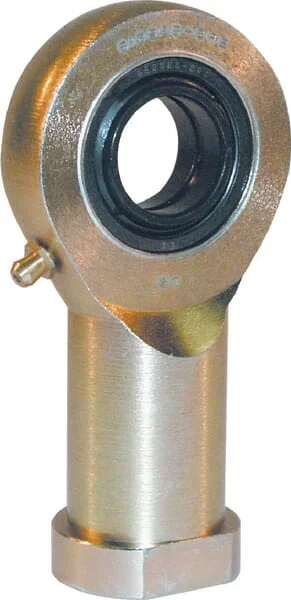

Mac Power - GIR6DO - Rod End

Mac Power - GIR6DO - Rod End

Mac Power - GIR6DO - Rod End

Mac Power - GIR6DO - Rod End

Number of products

In stock - ready to ship

Order now for delivery between 9 May and 13 May

Free shipping on orders over €60

Pay Securely with

Mac Power - GIR6DO - Rod End

Mac Power - GIR6DO - Rod End

€5.33

(Excl. VAT)

Price

(Excl. VAT)

€5.33

Number of products

Product Details

Brand

Unit

Each

Properties

Requires maintenance Lubricated connection steel/steel

BHole length

6 mm

Thread pitch

1.00 mm

ßEdge angle

13 °

L5Height base

5 mm

L4Total height

40,5 mm

Technical info

Upward of 25mm bore nipple screwed in

dHole diameter

6 mm

L3Thread length

11 mm

D4Shaft diameter

10 mm

Thread direction

Right

Application range

Agricultural machines Cylinder Articulated points Suspension

D3Thread diameter

M6

Surface treatment

Zinc-plated

WBase outside diameter

11 mm

DBearing outside diameter

14 mm

C1Head width (hole length)

4,4 mm

L7Shaft to center distance

12 mm

D1Outside diameter of inner ring

8 mm

H1Hole centre to bottom distance

30 mm

Manufacturer

Mac Power
