Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow
Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow
Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow
Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow
Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow
Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow

Mandam - 05-02-0649 - Toothed Disc 610 mm Disc Harrow

€60.83

(Excl. VAT)

Price

(Excl. VAT)

€60.83

Product Description

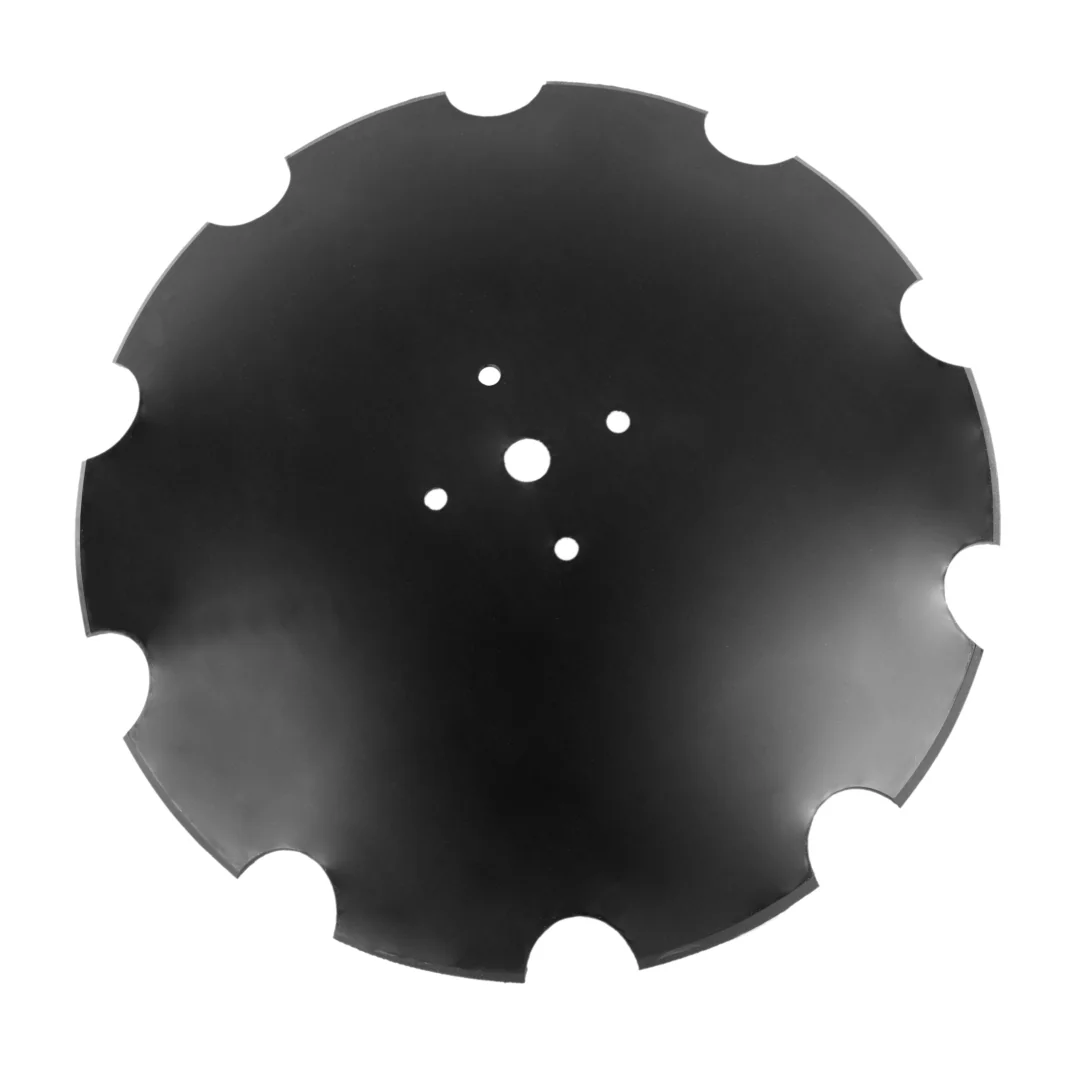

This toothed disc is a ground-engaging component for a disc harrow. It cuts and mixes crop residue into the soil surface as the harrow is pulled forward. The teeth on the outer edge increase soil engagement compared to a plain disc, helping to break up clods and incorporate material at shallower working depths. The disc mounts to the harrow gang via its center hole and bolt pattern; the bolt circle and center bore match the hub on the gang shaft. A worn or bent disc reduces cutting efficiency and can cause uneven working depth across the gang. The disc is manufactured to the original geometry so it aligns with the adjacent discs on the same shaft without requiring shimming.
Mandam

Product Details

Brand
Mandam
Thickness
4.5 mm
Disc Harrow
Mandam GAL
Hole Spacing
116 mm
Product Type
Disc
Hole Diameter
13 mm
Outer Diameter
610 mm
Number Of Holes
4
Number Of Teeth
10
Center Hole Diameter
26 mm
Manufacturer
Mandam
