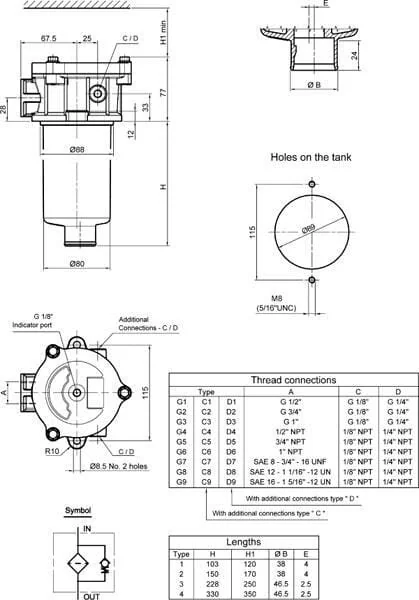

MP Filtri - MPF1002A25H - Return Filter 1 BSP MPF100/2-A25

Name: MP Filtri - MPF1002A25H - Return Filter 1 BSP MPF100/2-A25
Brand: MP Filtri
SKU: mp-filtri-mpf1002a25h
Price: 62.48 EUR
Availability: InStock

SKU: mp-filtri-mpf1002a25h

€62.48€53.40 (Excl. VAT)

RRP:€69.21

Save €6.73

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€62.48

Brand

MP Filtri

Unit

Each

Bypass

Yes

Height

147 mm

Length

147 mm

Medium

Hydraulic oil

Includes

Excludes indicator / manometer

Filter finess

25 µm

Max flow rate

95 l/min

Filtration level

Absolute

Housing material

Aluminium

Outside diameter

88 mm

Pressure collapse

10 BAR

Filtration material

Glass fibre

Max working pressure

8 BAR

Outlet port diameter

38 mm

Max working temperature

110 °C

Min working temperature

-25 °C

Outlet port thread diameter

1 Inch

Manufacturer

MP Filtri

Tank assembly Filtering from the outside in Fitted with a bypass valve Aggregate filter Hydraulic systems Suitable for mineral oils up to ISO 2943 and synthetic fluids Available on request in a version suitable for aqueous emulsions, water and glycol Available on request with 3-bar bypass valve Available on request with NPT thread or SAE connection Viton seal available on request- The maximum volume flow rate for a complete return filter applies at a pressure loss ∆p = 0.5 bar and at a viscosity of 30 mm2/s (cSt).
