Prillinger - 00136603 - Other Electrical Components

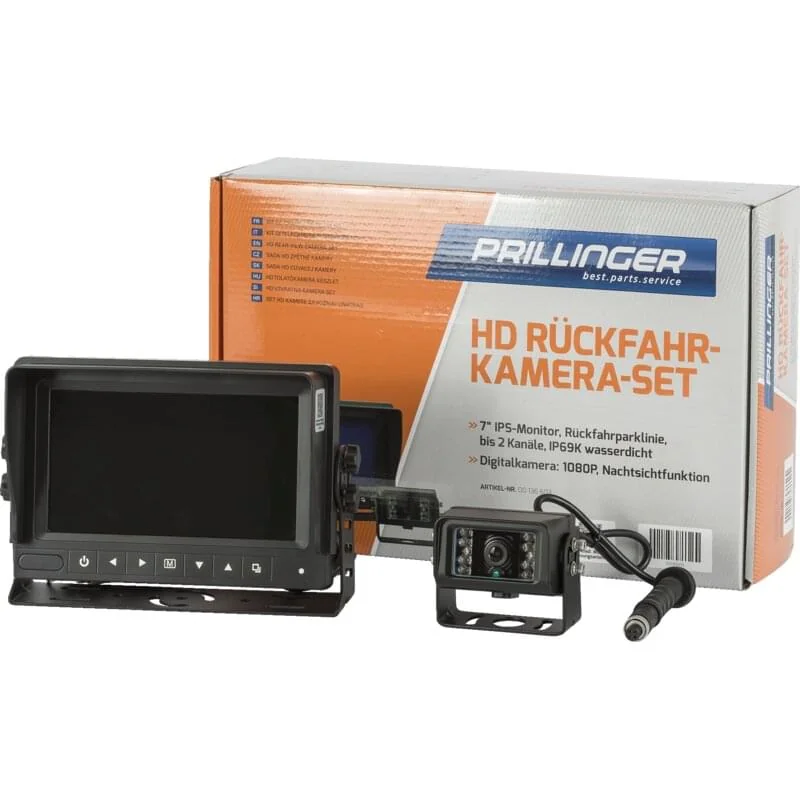

Product Description: Waterproof 7-inch HD IPS screen, automotive-grade DSP, OSD menu for setting screen display (mirrored or non-mirrored), reversing parking line, triggering priority functions. DC11 32V wide operating voltage range, independent power output, protection against load dump pulse voltage, reverse polarity protection for external power supply, protection against constant LED current and constant voltage. AHD camera with automotive-grade DSP, 2 million HD pixels, IP69K waterproof rating, IR-LED night vision function, cold-resistant waterproof signal output cable. 4-core, double-shielded bronze connection cable for avionics header with good anti-interference properties, low impedance, and low signal transmission attenuation. The aviation plug and the end line are manufactured using a double injection molding process and have good tensile and vibration resistance. Summary: Uses the reversing camera to capture a real-time image of the vehicle's rear and display it on the camera display. It provides the driver with a more intuitive and clearer view when reversing, thus effectively avoiding safety risks caused by the rear blind spot and improving reversing safety. Product Parameters: Waterproof HD LCD Monitor Color Monitor Screen: 7-inch IPS screen Resolution: 1024 x 600 Video Input: Max. supports 2CH AHD1080P/ 720P /CVBS video signal inputs Video System: PAL/NTSC (AUTO) Brightness (cd/m2): 600 Load Dump: ISO16750-2-Standard (24-V-System, Us 174 V, Ri 4 Ω, td 350 ms) Protection Class: IP68 Vibration Class: GB T 2423.56-2018-Standard (random 5G-Vibration) Working Temperature: -20 to +70 Storage Temperature: -30 to +80 Operating Voltage: DC 11 - 32 V Dimension (LxWxD): 218 x 150 x 54 mm Waterproof HD Camera Image Sensor: 1/2.8 Color Sony Effective Pixels: 1920 x 1080 Definition: 1080P Visible Angle: 110° Infrared Distance: 15 Meter (18 integrated 850 nm infrared lights) Protection Class: IP69K Operating Voltage: DC12V 10% (power supply via the monitor) Working Temperature: -20 to +60 Storage Temperature: -30 to +70 Vibration Class: GB T 2423.56-2018-Standard (random 5G-Vibration) Dimension (LxWxD):82 x 73 x 68 mm HD Video Signal Cable Interface: 4-pin aviation plug (male-female) Length: 15 Meter
