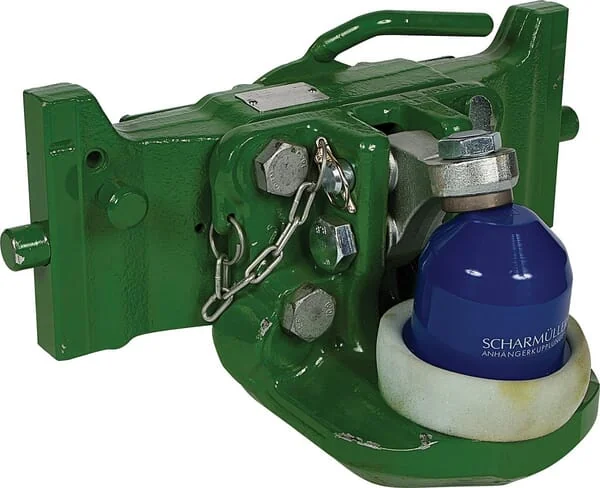

Scharmüller - 07639042A17 - Tow Ball Coupler JD K80 390mm

SKU: scharmueller-07639042a17

Scharmüller - 07639042A17 - Tow Ball Coupler JD K80 390mm

€1,057.91€904.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,057.91

Brand
Scharmüller
Part Numbers
07639042a17
OEM Part Numbers

John Deere

Fits

John Deere

Type
K80® Manual
Unit
Each
Colour
Green
Benefits
Optimum driving comfort thanks to minimum clearance between vehicle and trailer High support load Larger axial and vertical swivel angle than with Piton-Fix and bolt couplings Low wear and long service life
Extra info
Height Adjustable with Grabhandle
Properties
Optional retrofit with forced steering (right, left, both sides)
Track width
390 mm
Working length
163 mm
Thread diameter
M20
Track thickness
32 mm
Application range
Couplers of the following ABGs can be coupled: M9679, M9680, M9614, M9615, M9622, M9625, M9785, M9711, M9712 and with tow ball couplers to ISO 24347.
Adapter plate height
160 mm
Locking pin diameter
25 mm
Max. permissible D-Value
89,3 kN
Max. permissible vertical load
3000 kg
Manufacturer
Scharmüller

Scharmueller
Scharmüller specializes in tractor attachments and implements for farming and forestry. The brand offers front loaders, bale handlers, and logging equipment designed for heavy-duty use. Its products are engineered for durability and seamless integration with tractor hydraulic systems. Shop more than 84 genuine Scharmueller spare parts.
