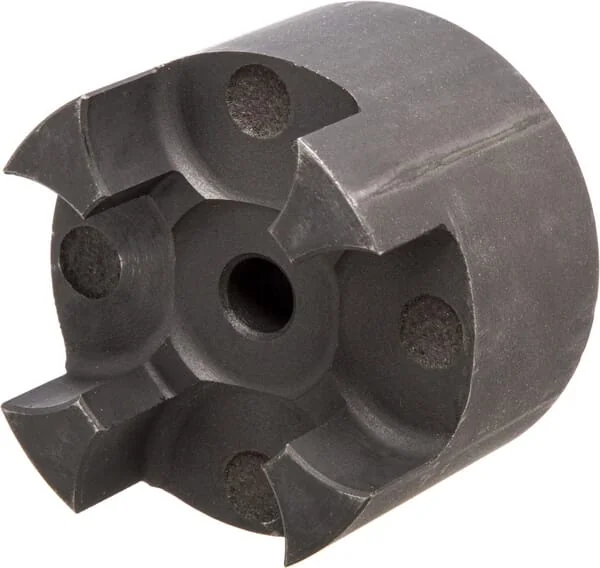

Sit - GRMP2838B - Hub Gg 28 B Pilot Bore
Sit - GRMP2838B - Hub Gg 28 B Pilot Bore
Sit - GRMP2838B - Hub Gg 28 B Pilot Bore
Sit - GRMP2838B - Hub Gg 28 B Pilot Bore
Sit - GRMP2838B - Hub Gg 28 B Pilot Bore

In stock - ready to ship

Order now for delivery between 1 May and 5 May
Free shipping on orders over €60

Pay Securely with

Sit - GRMP2838B - Hub Gg 28 B Pilot Bore

Sit - GRMP2838B - Hub Gg 28 B Pilot Bore

€11.70

(Excl. VAT)

Price

(Excl. VAT)

€11.70

Product Description

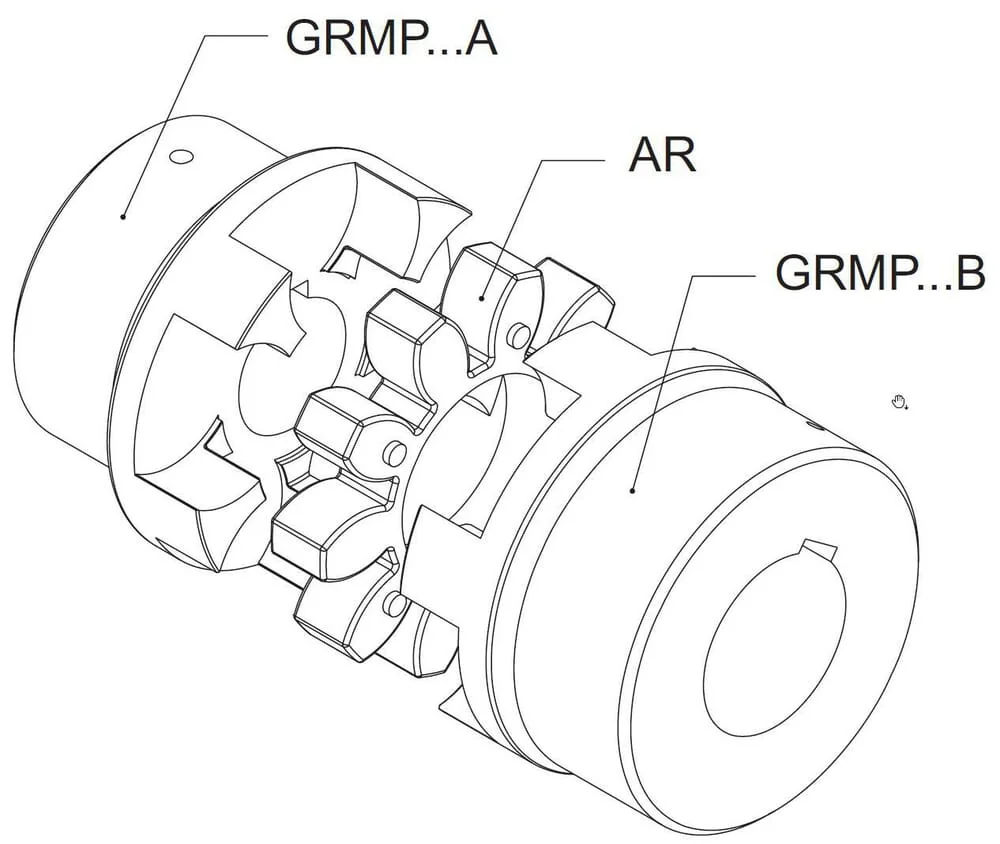

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)
Sit

Product Details

Brand
Sit
Unit
Each
Includes
1 coupling half
Material
Cast iron GG25
Type code
28/38
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
FgKey width
10 mm
HLength body
35 mm
ADiameter hub
65 mm
LTotal length
90 mm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
Application range
Shaft connection for pumps and motors
GBore diameter max.
38 mm
MClearance distance
20 mm
EOutside diameter flange
65 mm
Max. shaft misalignment axial
1.5 mm
Max. shaft misalignment radial
0.25 mm
Nominal working torque by 92°
95 N·m
Nominal working torque by 98°
160 N·m
Max. shaft misalignment angular
1.5 °
Manufacturer
Sit

Similar items you might like

  • Sit

    Sit - GRMP2838BF30 - Hub Gg 28 B Diameter 30h7 Key 8

    Sit

    €20.52

  • Sit

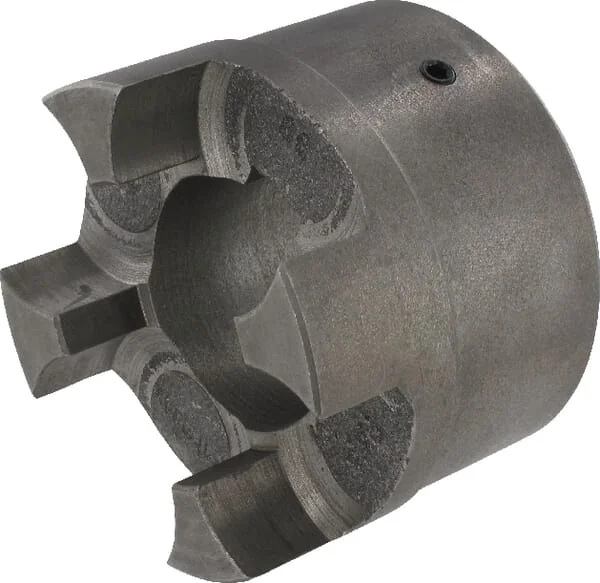

    Sit - GRMP2838BF35 - Hub Gg 28 B Diameter 35h7 Key 10
