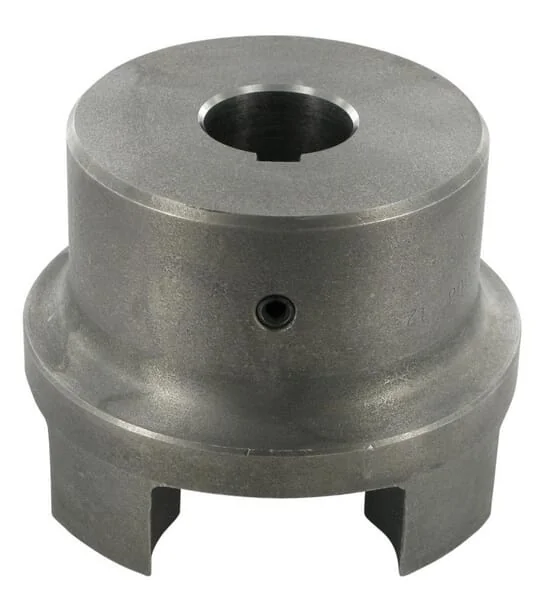

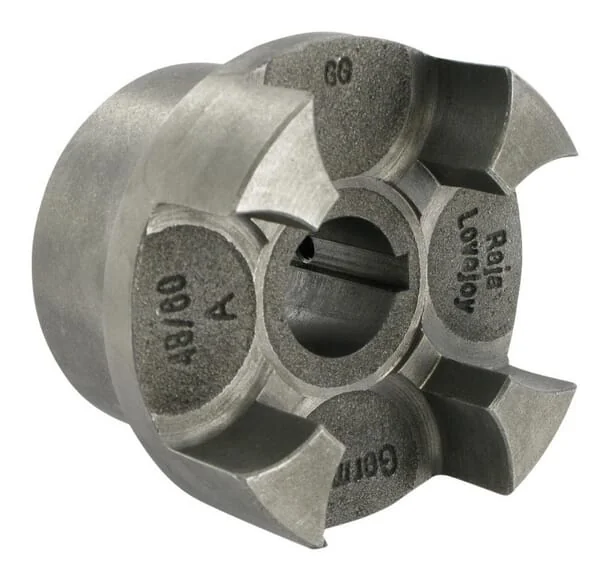

Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8
Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8
Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8
Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8
Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8
Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8

Sit - GRMP3845AF25 - Hub Gg 38 A Diameter 25h7 Key 8

€27.88

(Excl. VAT)

Price

(Excl. VAT)

€27.88

Product Description

Rupture proof Balanced: G16 in accordance with DIN-ISO 194 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type GRMB..B1/GRMB..B2 and 1 plastic star Interchangeable with: Rotex (KTR), Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) &Giflex (Chiaravalli)
Sit

Product Details

Brand
Sit
Unit
Each
Includes
1 coupling half
Material
Cast iron GG25
Type code
38/45
IHub width
37 mm
Properties
Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940
Consists of
1 coupling half
FgKey width
8 mm
LTotal length
114 mm
Technical info
Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type GRMB..B1/GRMB..B2 and 1 plastic star Can be replaced with Rotex (KTR); Spidex RaJa; MultiMont Astra (Reich); Trasco (SIT) & Giflex (Chiaravalli)
GInside diameter
38 mm
Application range
Shaft connection for pumps and motors
Max rotation speed
9500 r/min
AHub width - side 2
66 mm
MClearance distance
24 mm
BHub outside diameter
80 mm
HTotal length - side 1
45 mm
HTotal length - side 2
45 mm
Max. shaft misalignment angle
1,5 °
Max. shaft misalignment radial
0.28 mm
Nominal working torque by 92°
190 N·m
Nominal working torque by 98°
325 N·m
Manufacturer
