Sit - HRCB150HTL - Hub Gg, Tl 2012 H
Sit - HRCB150HTL - Hub Gg, Tl 2012 H
Sit - HRCB150HTL - Hub Gg, Tl 2012 H
Sit - HRCB150HTL - Hub Gg, Tl 2012 H

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

Sit - HRCB150HTL - Hub Gg, Tl 2012 H

Sit - HRCB150HTL - Hub Gg, Tl 2012 H

€32.45

(Excl. VAT)

Price

(Excl. VAT)

€32.45

Product Description

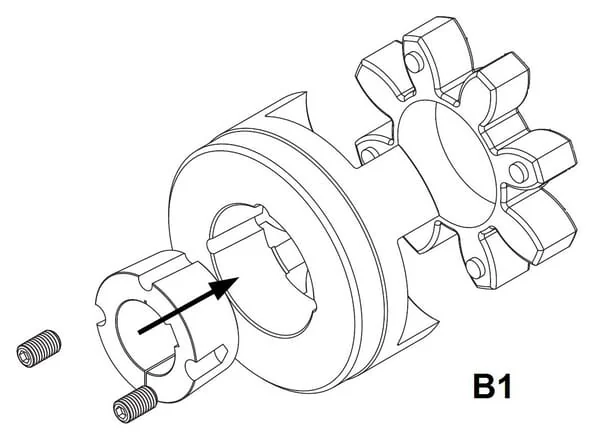

Rupture proof Balanced: G16 in accordance with DIN-ISO 1940 Available in Atex directive 94/9/EC Complete coupling consists of: 2 halves type HRC, 2 taperlock clamp bushes and 1 plastic star Interchangeable with Wyko Fenner Challenge HRC Interchangeable with Colmant Cuvelier's CRC Shaft connection for pumps and motors Type H - Taperlock bush mounted from outside Type F - Taperlock bush mounted from inside
Sit

Product Details

Brand
Sit
Pros
Very resistant to contamination High operational reliability Rupture proof
Type
150
Unit
Each
Weight
3.3 kg
Includes
1 coupling half
Material
GG25
Hub Width
23.5 mm
Type bush
2012
Length body
33.5 mm
Total length
107 mm
Nominal torque
600 kpm
d1Diameter hub
115 mm
daOutside diameter flange
150 mm
Max. revolutions min-1 rpm.
3.600
Max. shaft misalignment axial
0.9 mm
Max. shaft misalignment radial
0.4 mm
Max. shaft misalignment angular
1 °
Manufacturer
Sit

Similar items you might like

  • Sit

    Sit - HRCB180FTL - Hub Gg, Tl 2517 F

    Sit

    €54.07

  • Sit

    Sit - HRCB180HTL - Hub Gg, Tl 2517 H

    Sit

    €54.07

  • Sit

    Sit - HRCB230FTL - Hub Gg, Tl 3020 F

    Sit

    €84.38

  • Sit

    Sit - HRCB230HTL - Hub Gg, Tl 3020 H

    Sit

    €84.38

  • Sit

    Sit - HRCB70FTL - Hub Gg, Tl 1008 F

    Sit

    €9.15

  • Sit

    Sit - HRCB70HTL - Hub Gg, Tl 1008 H

    Sit

    €9.15

  • Sit

    Sit - HRCB90FTL - Hub Gg, Tl 1108 F

    Sit

    €13.65

  • Sit

    Sit - HRCB90HTL - Hub Gg, Tl 1108 H

    Sit

    €12.72

  • Sit

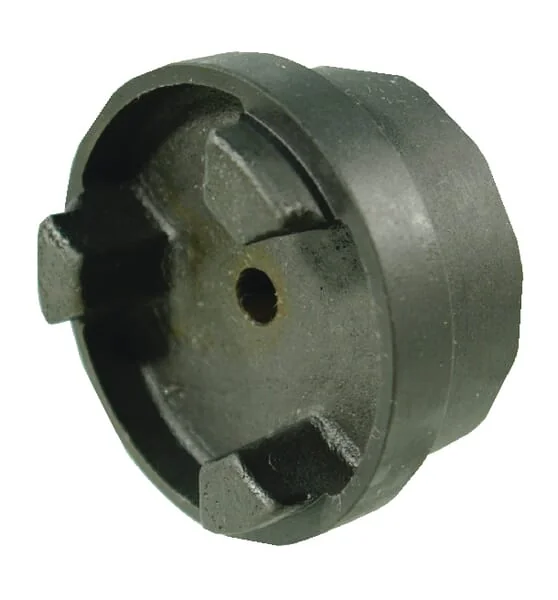

    Sit - HRCP110B - Hub Gg, Pilot Bore
