Transmission, Drivetrain & Brakes

Drivetrain Parts

Other Drivetrain Parts

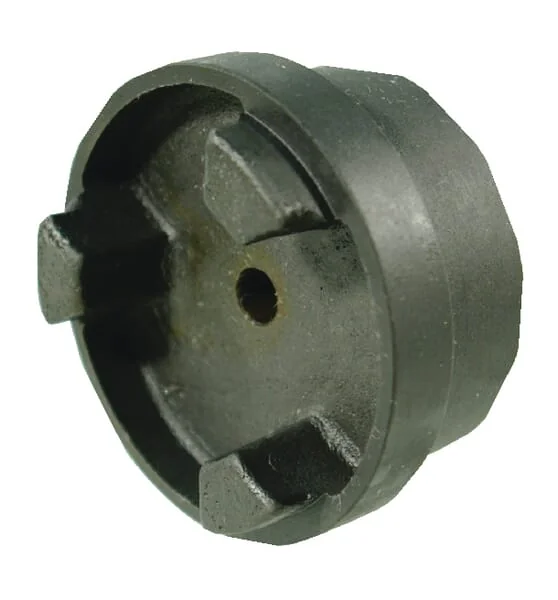

Sit - HRCP110B - Hub Gg, Pilot Bore

Sit - HRCP110B - Hub Gg, Pilot Bore

Sit - HRCP110B - Hub Gg, Pilot Bore

Sit - HRCP110B - Hub Gg, Pilot Bore

Sit - HRCP110B - Hub Gg, Pilot Bore

Number of products

In stock - ready to ship

Order now for delivery between 11 May and 14 May

Free shipping on orders over €60

Pay Securely with

Sit - HRCP110B - Hub Gg, Pilot Bore

Sit - HRCP110B - Hub Gg, Pilot Bore

€28.98

(Excl. VAT)

Price

(Excl. VAT)

€28.98

Number of products

Product Details

Brand

Type

110

Unit

Each

Weight

3.05 kg

Benefits

High level of operational reliability

Material

GG25

Properties

Rupture-proof Balanced: G16 in accordance with DIN-ISO 1940

Consists of

1 coupling half

Length body

45 mm

Total length

119 mm

l2Length hub

37 mm

Bore diameter

10 mm

Nominal torque

160 kpm

Technical info

Hub bore, keyway and tapped hole are optional Available in accordance with ATEX product directive 94/9/EC Complete coupling consists of 2 halves of type HRC and 1 plastic star Can be replaced with Fenner HRC

d1Diameter hub

100 mm

Application range

Shaft connection for pumps and motors

Bore diameter max.

55 mm

daOutside diameter flange

112 mm

Max. revolutions min-1 rpm.

5200

Max. shaft misalignment axial

0.6 mm

Max. shaft misalignment radial

0.3 mm

Max. shaft misalignment angular

1 °

Manufacturer

Sit
