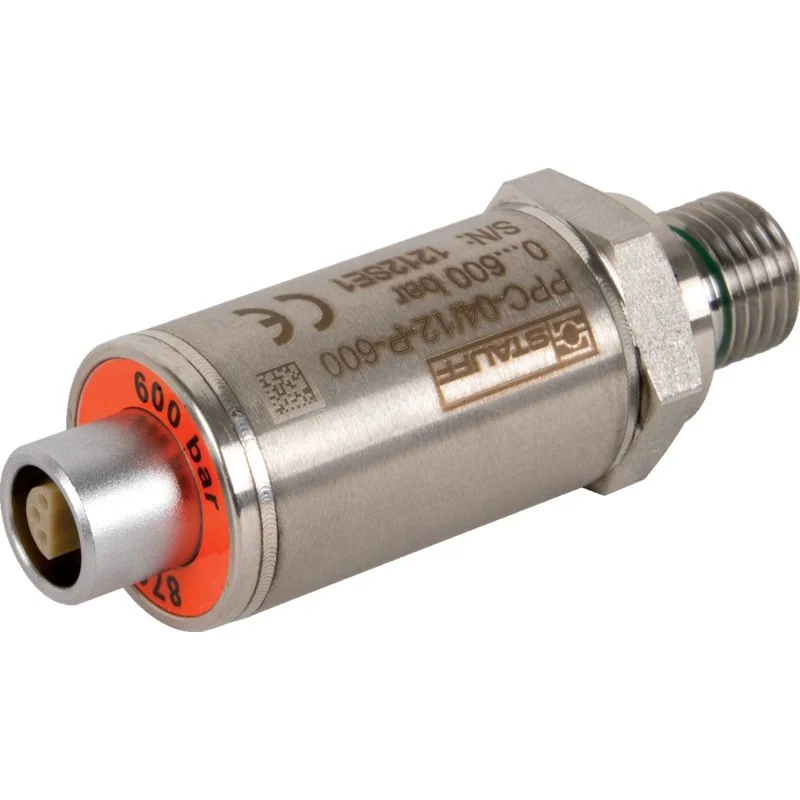

STAUFF - PPC-04/12-P-601 - Pressure sensor

OEM Quality

SKU: stauff-ppc-04-12-p-601

STAUFF - PPC-04/12-P-601 - Pressure sensor

€308.72€263.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€308.72

Features: suitable for gases and liquids 5-pin connection, robust stainless steel housing (1.4301) Pressure connection G1/4 (without adapter) Sensor version: PPC-04/12-P Pressure measurement range: 0 to 600 bar (pressure peaks up to 1000 bar) Overload pressure: 1200 bar Burst pressure: 2500 bar Accuracy: 0,25% +/- full scale value Technical information: The pressure sensors PPC-04/12-P can be used with all analog measuring devices of the PPC series thanks to their 5-pin connection. Due to their robust stainless steel design, fast response times ( 1 ms) and high accuracy ( 0,25 % FS* typ.) with automatic sensor recognition, the pressure sensors for the PPC are a safe and flexible solution.
Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 625 genuine Stauff spare parts.

Brand
Stauff
Accuracy (%)
0.25
Pressure Range
0 - 600 bar
Temperature Range
-25 bis +105 °C
Burst Pressure (bar)
2500
External Thread (inch)
1/4
Overload Pressure (bar)
1200
Manufacturer
Stauff
