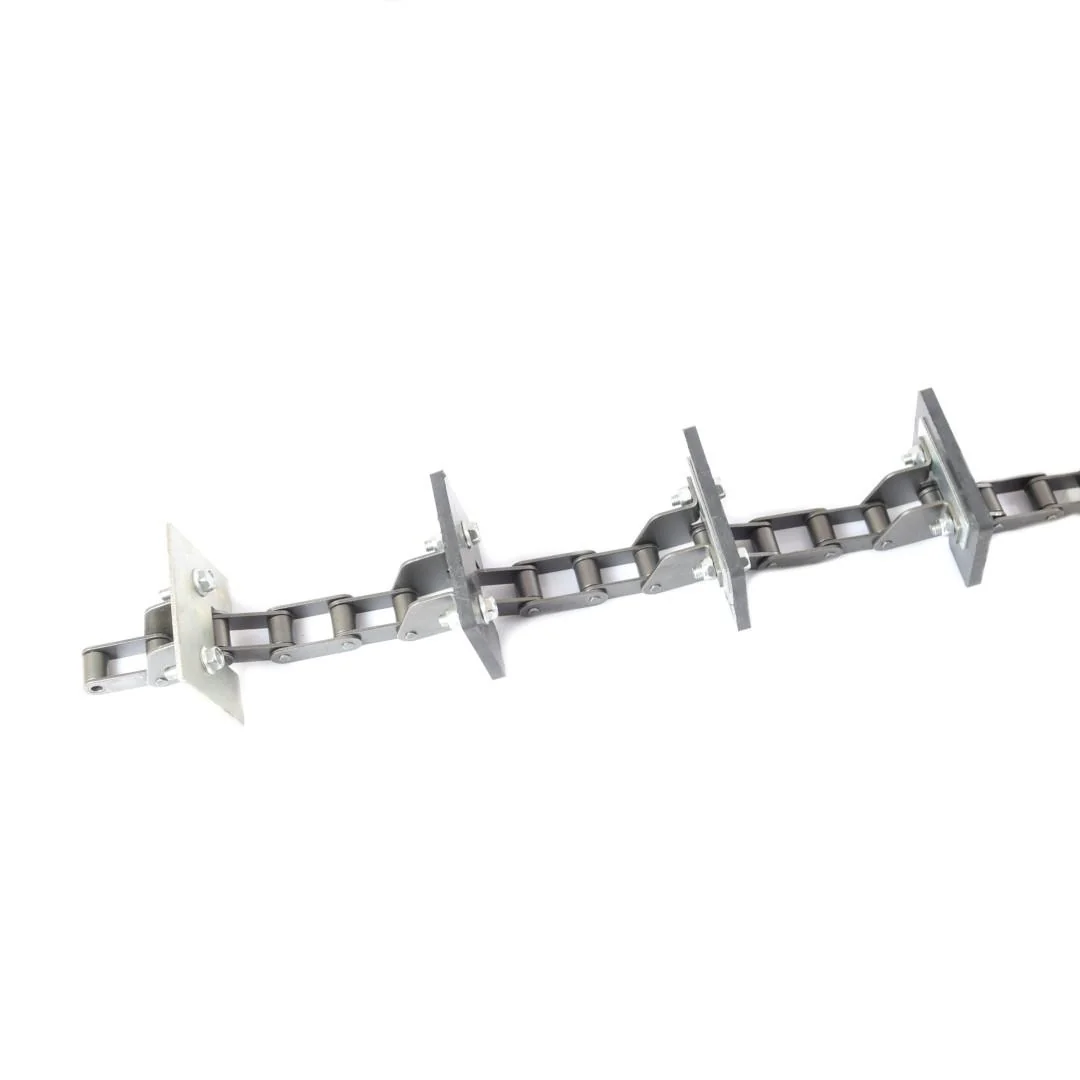

Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Tagex - 678448.0 - Claas Return Pan Conveyor Chain
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Tagex - 678448.0 - Claas Return Pan Conveyor Chain

Tagex - 678448.0 - Claas Return Pan Conveyor Chain

€264.53

(Excl. VAT)

Price

(Excl. VAT)

€264.53

Product Description

This chain drives the return pan that carries grain from the straw walkers back to the cleaning shoe. It is installed on the elevator assembly that moves material from the threshing mechanism toward the sieves. The chain is supplied without one paddle, which must be transferred from the original assembly during installation. A missing or worn paddle reduces conveying capacity and causes material buildup at the transition point. The clip included in the set secures the paddle to the chain link; reuse the existing clip if the original paddle is retained.
Tagex

Product Details

Brand
Tagex
Type
38.4-R
Paddle
107 x 80 x 9 mm (0006192983)
Location
Threshing mechanism, Straw walkers
Application
Harvesting machines
Chain Pitch
38.4 mm
Pin Diameter
6.92 mm
Product Type
Chain
Set Includes
Clip (0000028600)
Roller Diameter
15.88 mm
Inner Link Width
19.05 mm
Number Of Paddles
33
Manufacturer
Tagex
