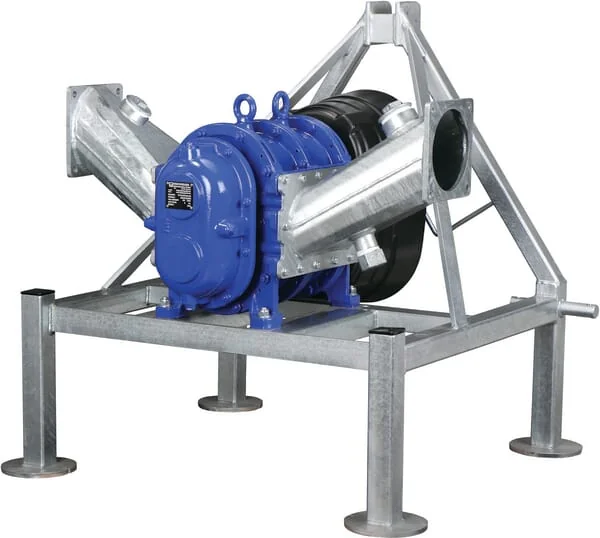

Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame
Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame
Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame
Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame

Vogelsang - APK0000186 - Rotary Lobe Pump R116-180S + Frame

€5,515.67

(Excl. VAT)

Price

(Excl. VAT)

€5,515.67

Product Description

Robust, reliable and proven Highly resistant against dry running
Vogelsang
Vogelsang manufactures high-performance agricultural machinery, focusing on slurry and manure handling systems. The brand is known for its innovative pump technology and separation equipment, which enhance nutrient management and environmental sustainability. Its solutions are widely used in livestock farming and biogas production. Shop more than 452 genuine Vogelsang spare parts.

Product Details

Brand
Vogelsang
DN
150 mm
a.
912 mm
b.
330 mm
Unit
Each
Weight
146 kg
Benefits
Long service life
Stroke v
3,48 l
Flow max.
2250 l/min
Length L1
135 mm
Length L2
271 mm
Properties
Greasable shaft seals Fitted with bearings on both sides Lobe material: SBR70 With steel protective plates Self-priming to 7.5 m Can operate in both directions of flow Low pulse sensitivity
Consists of
Lobe pump Galvanised three-point bracket PTO shaft (1 3/8" 6-piece for tractor drive) with overload protection PTO shaft protective cap 2 connecting pipes with flanges
Drive shaft
2x 1 3/8" 6-pieces, for tractor drive
Torque max.
373 N·m
Oil capacity
1 l
Pressure max.
5 BAR
Pump capacity
135 m³/h
Rotation max.
650 r/min
Application range
For pumping tasks in farm and field
Technical drawing
GBO.019
Flange diameter (in)
6 Inch
Manufacturer
Vogelsang
