Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Number of products

In stock - ready to ship

Order now for delivery between 6 June and 10 June

Free shipping on orders over €60

Pay Securely with

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

Voss - DGWEV12LM16WD - Swivel Banjo 12L M16

€59.50

(Excl. VAT)

Price

(Excl. VAT)

€59.50

Number of products

Product Description

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

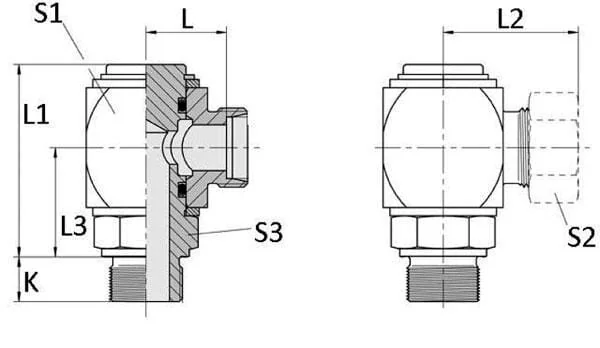

Product Details

Brand

Pros

2S cutting ring

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

12L

L1Length

47,5 mm

DIN standard

2401 2353 228 3852 259

Pipe diameter

12 mm

Surface treatment

Zinc, Nickel-plated

dxInside diameter

21,9 mm

Connection 2, type

Thread

Connection no 1 type

Thread

Max working pressure

250 BAR

LConnections distance

20 mm

Connection 2, thread pitch

1.50 mm

S1Connection no 1 hex size

32 mm

S2Connection 2, wrench size

22.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M16

S3Connection no 1 wrench size

24.0 mm

KConnection no 1 thread length

21 mm

Connection no 1 thread diameter

M18

L3Connection centre to insert distance

27 mm

L2Connection no 1 center to end distance

34,5 mm

Manufacturer

Voss
