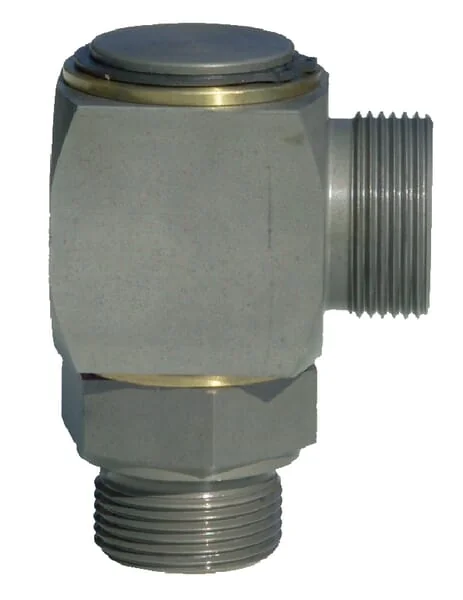

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

Voss - DGWEV18LR12 - Voss Swivel Coupling 18L R1/2

€82.23

(Excl. VAT)

Price

(Excl. VAT)

€82.23

Number of products

Product Description

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Length

58,5 mm

Series

18L

Includes

Swivel coupling Cutting ring Gland nuts

DIN standard

2401 2353 228 3852 259

ISO standard

228

Pipe diameter

18 mm

Product details

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Flow rate at 2 bar

40 l/min

Connection no 1 type

Thread

Max working pressure

100 BAR

LConnections distance

23 mm

S1Connection no 1 hex size

36 mm

Connection no 1 thread type

BSP

S2Connection 2, wrench size

32.0 mm

S3Connection no 1 wrench size

27.0 mm

KConnection no 1 thread length

14 mm

Connection no 1 thread diameter

1/2 Inch

L3Connection centre to insert distance

33,5 mm

L2Connection no 1 center to end distance

39 mm

Manufacturer

Voss
