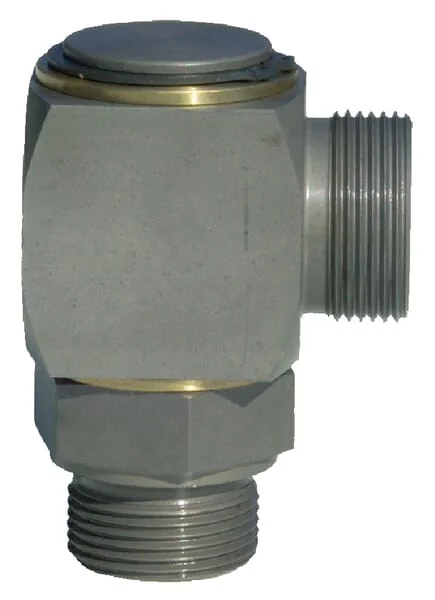

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping

Pay Securely with

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

Voss - DGWEV22LM26 - Voss Swivel Coupling 22L M26

€120.16

(Excl. VAT)

Price

(Excl. VAT)

€120.16

Number of products

Product Description

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

2S cutting ring

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

22L

L1Length

65,5 mm

DIN standard

2401 2353 228 3852 259

Pipe diameter

22 mm

Product details

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Connection no 1 type

Thread

Max working pressure

100 BAR

LConnections distance

27 mm

Connection 2, thread pitch

1.50 mm

S1Connection no 1 hex size

41 mm

S2Connection 2, wrench size

36.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

M26

S3Connection no 1 wrench size

32.0 mm

KConnection no 1 thread length

16 mm

Connection no 1 thread diameter

M30

L3Connection centre to insert distance

38 mm

L2Connection no 1 center to end distance

43 mm

Manufacturer

Voss

Similar items you might like

Voss - DGWEV6LR18 - Voss Swivel Coupling 6L R1/8
Voss
€42.66
Voss - DGWEV6SM12 - Voss Swivel Coupling 6S M12
Voss
€116.49
Voss - DGWEV6SR14 - Voss Swivel Coupling 6S R1/4
Voss
€45.78
Voss - DGWEV8LM12 - Voss Swivel Coupling 8L M12
Voss
€116.49
Voss - DGWEV8LR14 - Voss Swivel Coupling 8L R1/4
Voss
€45.78

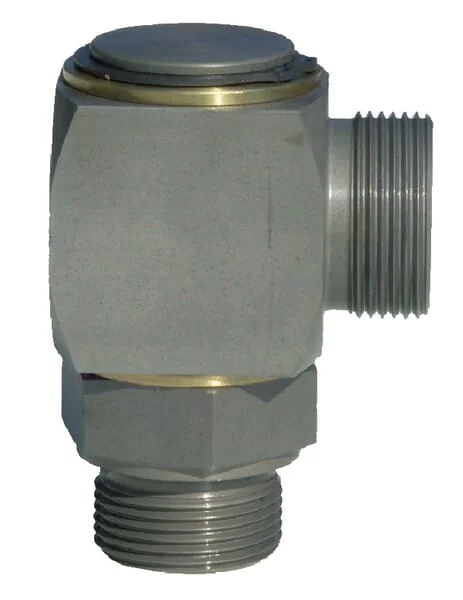

Voss - DGWEV8SR14 - Voss Swivel Coupling 8S R1/4
Voss
€45.78
Voss - DNBBT20 - Voss Double Nipple 1 1/4 BSP x 1 1/4 BSPT
Voss
€39.45
Voss - DNBBT24 - Voss Double Nipple 1 1/2 BSP x 1 1/2 BSPT
Voss
€34.10
Voss - DNBBT32 - Voss Double Nipple 2 BSP x 2 BSPT
Voss
€83.32

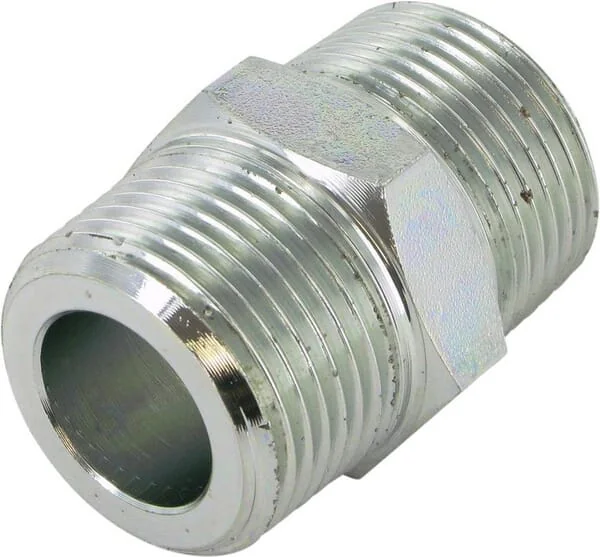

Voss - DNBT16 - Voss Double Nipple 1 BSPT
