Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4
Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4
Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4
Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4

In stock - ready to ship

Order now for delivery between 9 May and 13 May
Free shipping on orders over €60

Pay Securely with

Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4

Voss - EGESD35LR114WD - Coupling-Insert-35LR-1 1/4

€16.36

(Excl. VAT)

Price

(Excl. VAT)

€16.36

Product Description

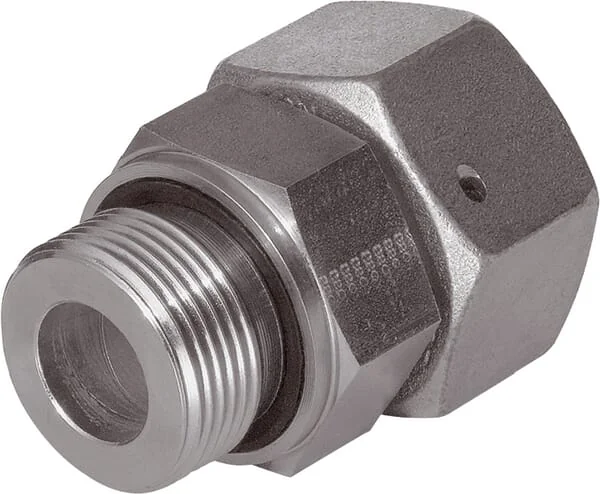

The VOSS EGESD35LR114WD is a genuine EO-2 FORM S coupling insert designed for hydraulic systems. This light series (LR) insert is suitable for tubes with a 35 mm outer diameter and features a G 1 1/4 A connection thread. Manufactured from durable steel with a zinc-nickel coating, it provides excellent corrosion resistance and reliable performance in demanding applications.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
35L
Cone angle
24 °
Pipe diameter
35 mm
Inside diameter
28 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
330 N·m

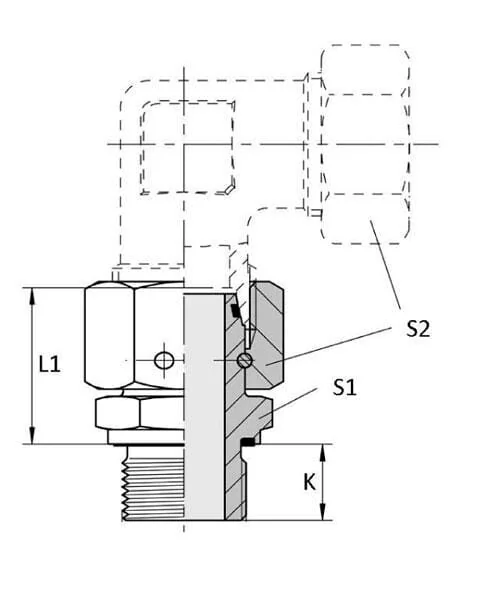

KConnection no 1 length
20 mm
Connection no 1 diameter
35 mm
Connection no 1 hex size
49,9 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
50.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1-1/4 Inch
Connection no 1 thread length
20 mm
S1Connection no 1 wrench size
50.0 mm
Connection 2, threads per inch
11
Connection no 1 thread diameter
M45
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
42,5 mm
Manufacturer
Voss
