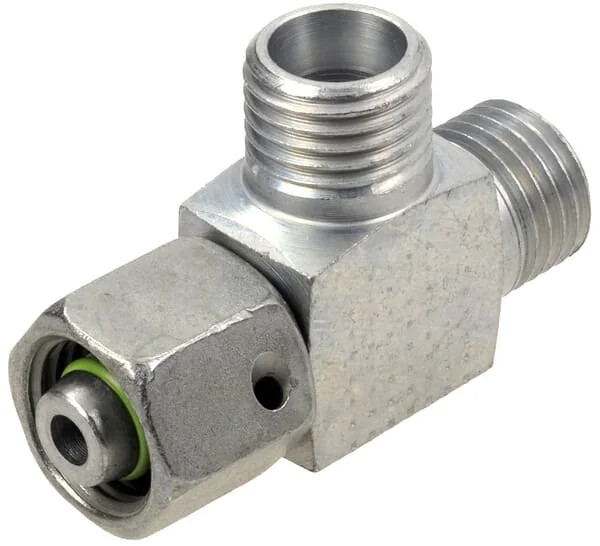

VOSS - ELSD22L - Reversible T-fitting 22L

VOSS - ELSD22L - Reversible T-fitting 22L

VOSS - ELSD22L - Reversible T-fitting 22L

VOSS - ELSD22L - Reversible T-fitting 22L

Number of products

In stock - ready to ship

Order now for delivery between 13 July and 16 July

Free shipping on orders over €60

Pay Securely with

VOSS - ELSD22L - Reversible T-fitting 22L

VOSS - ELSD22L - Reversible T-fitting 22L

€16.18

(Excl. VAT)

Price

(Excl. VAT)

€16.18

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Part Numbers

elsd22l

Pros

2S cutting ring

Unit

Each

Shape

Tee (T) - 3 connections

Series

L

Includes

pre-assembled gland

DIN standard

2353 3865 2401

Pipe diameter

22 mm

S1Body height

27 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

19,33 mm17 mm

Product details

Optimal cutting ring connection and functionality Multiple corrosion resistance

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection 3, type

Swivel nut

Connection 3, length

55

Connection no 1 type

Thread

Max working pressure

250 BAR

Sealing ring thickness

2 mm

Connection 2, thread type

Metric

Connection 3, thread type

Metric

Connection 2, thread pitch

2.00 mm

Connection 3, thread pitch

2.00 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

36.0 mm

Connection no 1 thread pitch

2.00 mm

Sealing ring inside diameter

20 mm

Connection 2, thread diameter

M30

Connection 3, thread diameter

M30

S2Connection no 1 wrench size

36.0 mm

Connection no 1 thread diameter

M30

Connection 2, type - male/female

Male

Connection 3, type - male/female

Female

Connection no 1 type - male/female

Male

LConnection 3 centre to end distance

27,5 mm

L1Connection 2, centre to end distance

38,5 mm

L2Connection no 1 center to end distance

44 mm

Manufacturer

Voss
