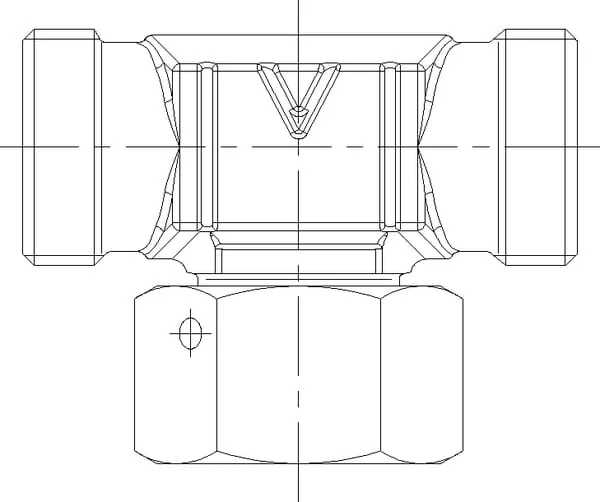

VOSS - ETSD10S - Adjustable T-fitting 10S

OEM Quality

SKU: voss-etsd10s

VOSS - ETSD10S - Adjustable T-fitting 10S

€8.36

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.36

Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
etsd10s
Pros
Reduced risk of leakage
Unit
Each
Shape
Tee (T) - 3 connections
Length
50 mm
Series
S
DIN standard
2353 3865 2401
Pipe diameter
10 mm
S1Body height
19 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
7,11 mm6 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection 3, type
Swivel nut
Connection 3, length
45
Connection no 1 type
Thread
Max working pressure
800 BAR
Sealing ring thickness
1,5 mm
Connection 2, thread type
Metric
Connection 2, wrench size
19.0 mm
Connection 3, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection 3, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Sealing ring inside diameter
8,5 mm
Connection 2, thread diameter
M18
Connection 3, thread diameter
M18
S2Connection no 1 wrench size
22.0 mm
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Male
Connection 3, type - male/female
Female
Connection no 1 type - male/female
Male
LConnection 3 centre to end distance
17,5 mm
L2Connection 2, centre to end distance
30 mm
L1Connection no 1 center to end distance
34 mm
Manufacturer
Voss
