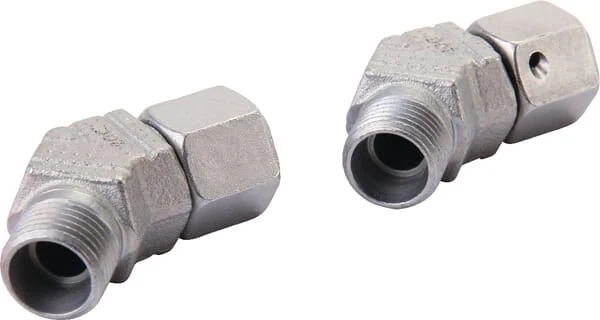

VOSS - EVSD12S - 45° cutting ring connection 12s

OEM Quality

SKU: voss-evsd12s

VOSS - EVSD12S - 45° cutting ring connection 12s

€21.54€18.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€21.54

Brand
Voss
Part Numbers
evsd12s
Pros
Reduced risk of leakage
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Length
17 mm
Series
12S
Includes
Body Pre-assembled gland nut and cutting ring Excluding separate gland nut and cutting ring
Cone angle
24 °
DIN standard
2401 2353
Pipe diameter
12 mm
Inside diameter
8 mm8 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance
Connection 2, type
O-ring cone
Connection no 1 type
Cutting ring
Max working pressure
630 BAR
Connection 2, diameter
12 mm
Connection no 1 diameter
12 mm
Connection 2, thread type
Metric
Connection 2, wrench size
24.0 mm
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
19.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M20
Connection no 1 thread diameter
M20
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
24,5 mm
Connection no 1 center to end distance
31 mm
Manufacturer
Voss

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
