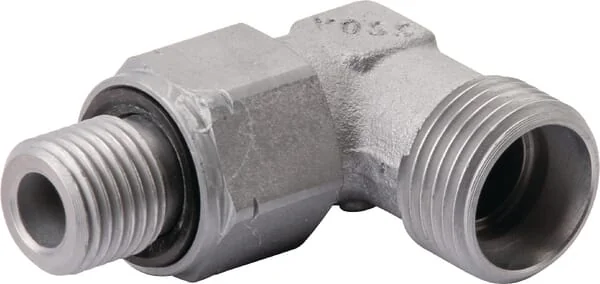

Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4
Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4
Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4
Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4

Voss - EWSC8LR14WD - Coupling And Locking Nut 8-1/4

€10.15

(Excl. VAT)

Price

(Excl. VAT)

€10.15

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Low risk of leakage
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
Material
Steel
Pipe diameter
8 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
7 mm6 mm
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
315 BAR
Max. tightening torque
50 N·m
Connection no 1 diameter
8 mm
Connection no 1 hex size
18,9 mm
Connection 2, thread type
BSPP
Connection 2, wrench size
17.0 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/4 Inch
S1Connection no 1 wrench size
19.0 mm
Connection 2, threads per inch
19
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
M14
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
38 mm
Connection no 1 center to end distance
23 mm
Manufacturer
Voss

Similar items you might like

  • Voss

    Voss - EWSD10L - Swivel Elbow Coupling 90° M16x1.5 10l

    Voss

    €5.31

  • Voss

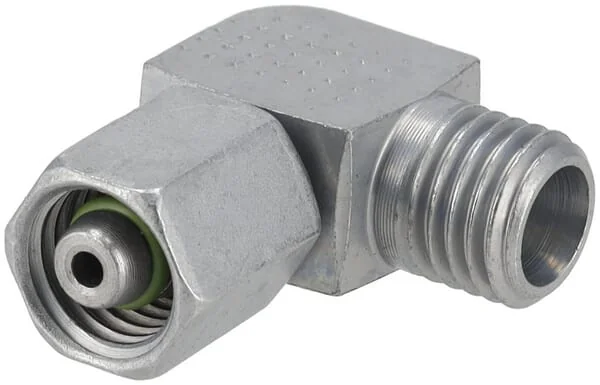

    Voss - EWSD10S - Swivel Elbow Coupling 90° M18x1.5 10s

    Voss

    €6.07

  • Voss

    Voss - EWSD12L - Swivel Elbow Coupling 90° M18x1.5 12l

    Voss

    €4.89

  • Voss

    Voss - EWSD12S - Swivel Elbow Coupling 90° M20x1.5 12s

    Voss

    €6.22

  • Voss

    Voss - EWSD14S - Swivel Elbow Coupling 90° M22x1.5 14s

    Voss

    €7.94

  • Voss

    Voss - EWSD15L - Swivel Elbow Coupling 90° M22x1.5 15l

    Voss

    €6.57

  • Voss

    Voss - EWSD16S - Swivel Elbow Coupling 90° M24x1.5 16s

    Voss

    €8.25

  • Voss

    Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

    Voss

    €10.75

  • Voss

    Voss - EWSD35L - Swivel Elbow Coupling 90° M45x2.0 35l

    Voss

    €20.76

  • Voss

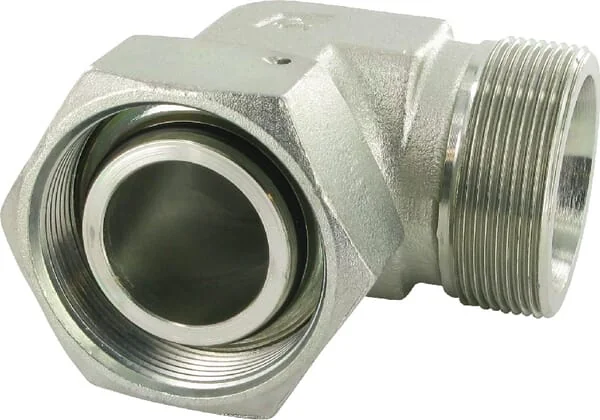

    Voss - EWSD38S - Swivel Elbow Coupling 90° M52x2.0 38s
