Voss - GES12L34UNF - Coupling 12L 3/4 UNF

OEM Quality

SKU: voss-ges12l34unf

Voss - GES12L34UNF - Coupling 12L 3/4 UNF

€8.93

(excl. VAT)
RRP:€10.03
Save €1.10

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.93

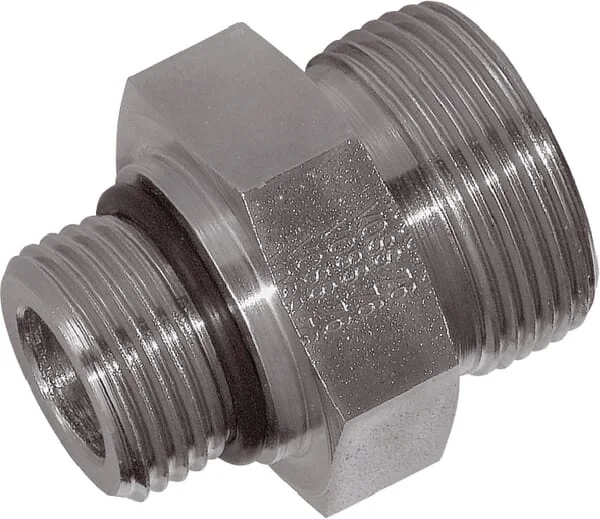

Genuine VOSS GES12L34UNF straight male stud coupling from the GES L series, designed for connecting a 12mm outer diameter tube to a port with a 3/4UNF thread. Manufactured from durable galvanized steel, ensuring excellent corrosion resistance and longevity in demanding hydraulic applications. This fitting is engineered to withstand a maximum operating pressure of 250 bar, providing a secure and reliable connection.
Voss
Voss is recognized as a supplier of high-quality industrial and agricultural components, with a particular focus on hydraulic systems and fluid power solutions. While specific founding details like year and founder are not widely publicized, the brand has established a presence in the market for its robust and reliable products. Its components are designed to meet the demanding requirements of various machinery and applications. The company's product portfolio primarily encompasses hydraulic fittings, hoses, and connection technology. These components are crucial for ensuring efficient and leak-free fluid transfer in complex systems. Voss also offers a range of hydraulic control valves, ball bearings, and various fasteners, catering to a broad spectrum of industrial and agricultural needs. The brand's focus on precision engineering ensures compatibility and performance across different equipment types. At Partao, you can find a comprehensive selection of Voss spare parts. Our top categories for this brand include Ball Bearings, Bolts & Fasteners, Hand Tools, Hoses & Fittings, and Hydraulic Control Valves. Over 22,632 genuine Voss spare parts are available at Partao. Equipment manufacturers and maintenance professionals often select Voss components for their durability and performance in challenging environments. The brand's solutions are frequently integrated into tractor attachments, irrigation systems, and other agricultural machinery where reliable fluid handling is critical. Its commitment to quality helps ensure the longevity and operational efficiency of the machinery it supports.

Brand
Part Numbers
ges12l34unf
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
31 mm
Series
L
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
12 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
9 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Max. tightening torque
55 N·m
Connection no 1 diameter
12 mm
Connection no 1 hex size
23 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
22.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
3/4 Inch
S1Connection no 1 wrench size
24.0 mm
Connection 2, threads per inch
16
KConnection no 1 thread length
11,2 mm
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
12,5 mm
L2Connection no 1 center to end distance
27 mm
Manufacturer
Voss
