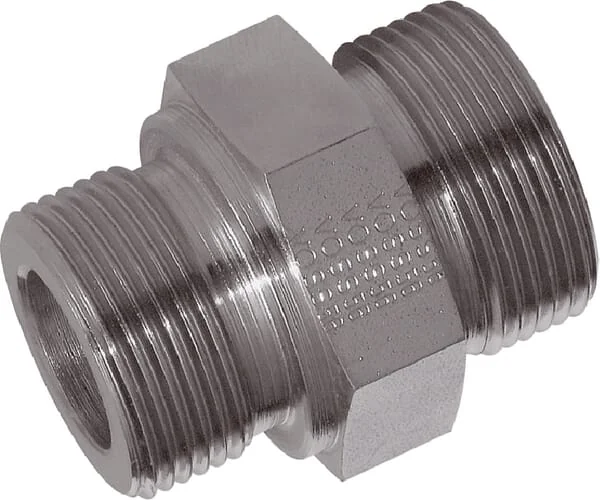

Voss - GES16SM27 - Coupling 16S M27
Voss - GES16SM27 - Coupling 16S M27
Voss - GES16SM27 - Coupling 16S M27
Voss - GES16SM27 - Coupling 16S M27
Voss - GES16SM27 - Coupling 16S M27
Voss - GES16SM27 - Coupling 16S M27

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

Voss - GES16SM27 - Coupling 16S M27

Voss - GES16SM27 - Coupling 16S M27

€14.11

(Excl. VAT)

Price

(Excl. VAT)

€14.11

Product Description

Genuine VOSS GES16SM27 heavy series straight coupling, engineered for robust hydraulic applications. This fitting features a cutting ring or VOSSFormSQR connection suitable for a 16mm outer diameter hydraulic tube, and a male M27x2 metric thread for secure attachment. Constructed from high-quality steel, it is designed to withstand high-pressure systems, with a maximum operating pressure of 630 bar, ensuring reliable and leak-free performance.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
45 mm
Series
16S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
16 mm
Inside diameter
12 mm
Product details
Connects directly to a metric hose gland or pre-assembled coupling- Multiple corrosion resistance- Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Max. tightening torque
420 N·m
Connection no 1 diameter
16 mm
Connection no 1 hex size
32 mm
Connection 2, thread type
Metric
Connection no 1 thread type
Metric
S2Connection 2, wrench size
32.0 mm
d1Connection 2, thread pitch
1.50 mm
S1Connection no 1 wrench size
32.0 mm
KConnection no 1 thread length
16 mm
d2Connection no 1 thread pitch
2.00 mm
d1Connection 2, thread diameter
M24
Connection 2, type - male/female
Male
d2Connection no 1 thread diameter
27 mm
Connection no 1 type - male/female
Male
L2Connection no 1 center to end distance
20,5 mm
Manufacturer
Voss
