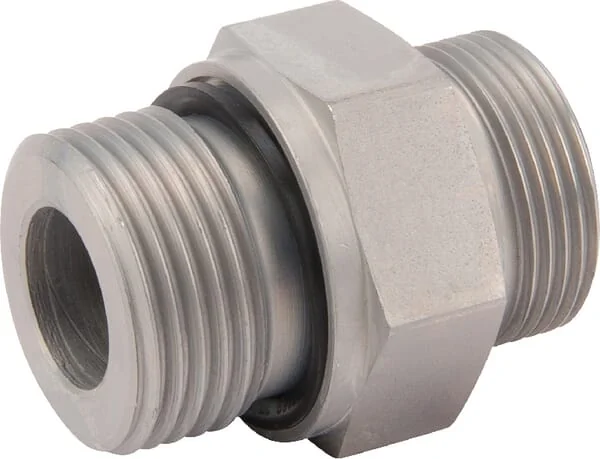

Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)
Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)
Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)
Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)
Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)

In stock - ready to ship

Order now for delivery between 8 July and 11 July
Free shipping on orders over €60

Pay Securely with

Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)

Voss - GES18LM27WD - Threaded 18L-M27 (Return LS)

€11.73

(Excl. VAT)

Price

(Excl. VAT)

€11.73

Product Description

The VOSS GES18LM27WD is a genuine VOSS screw-in stud coupling, part of the light series (L) hydraulic fittings. It is designed for secure connections with an 18mm outer diameter tube and features an M27x2 metric thread. Manufactured from robust steel, this coupling includes an O-ring and a cutting ring to ensure a reliable, leak-proof seal in demanding hydraulic systems. Ideal for various industrial and agricultural machinery applications requiring high-quality threaded connections.
Voss
Voss is recognized as a supplier of high-quality industrial and agricultural components, with a particular focus on hydraulic systems and fluid power solutions. While specific founding details like year and founder are not widely publicized, the brand has established a presence in the market for its robust and reliable products. Its components are designed to meet the demanding requirements of various machinery and applications. The company's product portfolio primarily encompasses hydraulic fittings, hoses, and connection technology. These components are crucial for ensuring efficient and leak-free fluid transfer in complex systems. Voss also offers a range of hydraulic control valves, ball bearings, and various fasteners, catering to a broad spectrum of industrial and agricultural needs. The brand's focus on precision engineering ensures compatibility and performance across different equipment types. At Partao, you can find a comprehensive selection of Voss spare parts. Our top categories for this brand include Ball Bearings, Bolts & Fasteners, Hand Tools, Hoses & Fittings, and Hydraulic Control Valves. Over 22,632 genuine Voss spare parts are available at Partao. Equipment manufacturers and maintenance professionals often select Voss components for their durability and performance in challenging environments. The brand's solutions are frequently integrated into tractor attachments, irrigation systems, and other agricultural machinery where reliable fluid handling is critical. Its commitment to quality helps ensure the longevity and operational efficiency of the machinery it supports.

Product Details

Brand
Voss
Part Numbers
ges18lm27wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
43 mm
Series
18L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
18 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
15 mm
Product details
WD = Pre-assembled with flexible seal Optimal cutting ring connection and functionality Multiple corrosion resistance
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
180 N·m
Connection no 1 diameter
18 mm
Connection no 1 hex size
31,9 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
Metric
S2Connection 2, wrench size
32.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M27
S1Connection no 1 wrench size
32.0 mm
KConnection no 1 thread length
16 mm
Connection no 1 thread diameter
27 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Manufacturer
Voss
