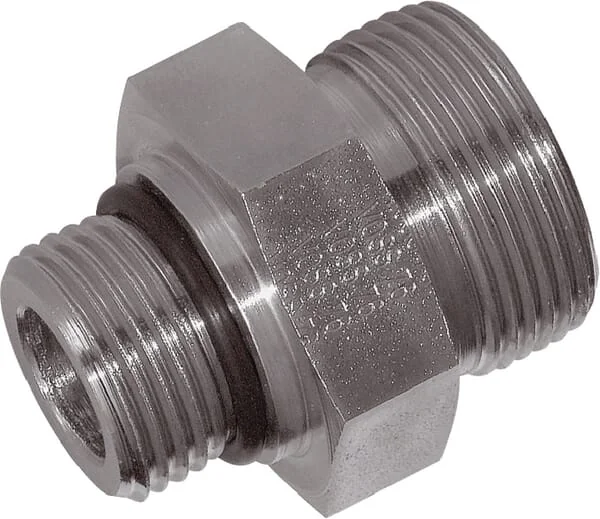

VOSS - GES16S34UNF - Coupling 16S 3/4UNF

OEM Quality

SKU: voss-ges16s34unf

VOSS - GES16S34UNF - Coupling 16S 3/4UNF

€9.85

(excl. VAT)
RRP:€11.34
Save €1.49
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€9.85

Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
ges16s34unf
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
38 mm
Series
S
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
16 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
12 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
630 BAR
Max. tightening torque
100 N·m
Connection no 1 diameter
16 mm
Connection no 1 hex size
23 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
30.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
3/4 Inch
S1Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
16
KConnection no 1 thread length
11,2 mm
Connection no 1 thread diameter
M24
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
18,5 mm
L2Connection no 1 center to end distance
37 mm
Manufacturer
Voss
