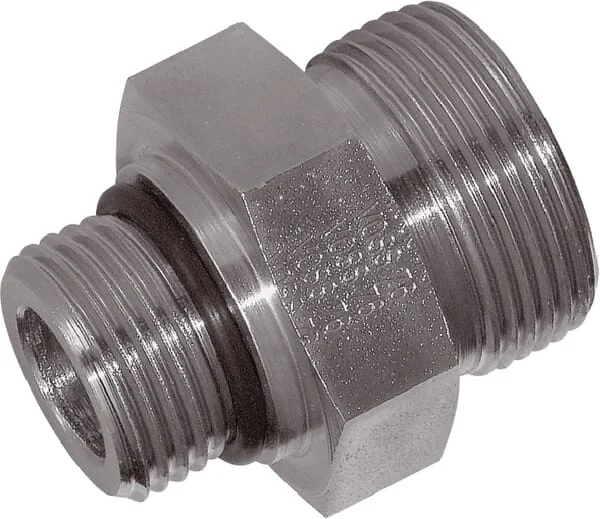

VOSS - GES22L1116UNF - Coupling 22L 1-1/16UNF

OEM Quality

SKU: voss-ges22l1116unf

VOSS - GES22L1116UNF - Coupling 22L 1-1/16UNF

€16.92€14.46 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.92

Brand
Voss
Part Numbers
ges22l1116unf
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
39 mm
Series
L
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
22 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
18 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
110 N·m
Connection no 1 diameter
22 mm
Connection no 1 hex size
32 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
36.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1-1/16 Inch
S1Connection no 1 wrench size
32.0 mm
Connection 2, threads per inch
12
KConnection no 1 thread length
15 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
16,5 mm
L2Connection no 1 center to end distance
33 mm
Manufacturer
Voss

Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
