Hydraulic Systems

Hoses & Fittings

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

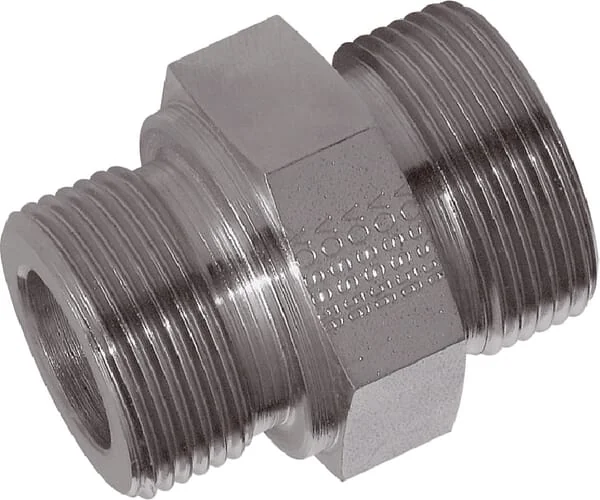

Voss - GES8LM10 - Coupling 8L M10

Voss - GES8LM10 - Coupling 8L M10

€3.18

(Excl. VAT)

Price

(Excl. VAT)

€3.18

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

24,5 mm

Series

8L

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

8 mm

Inside diameter

4 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

25 N·m

Connection no 1 diameter

8 mm

Connection no 1 hex size

14 mm

Connection 2, thread type

Metric

Connection no 1 thread type

Metric

S2Connection 2, wrench size

17.0 mm

d1Connection 2, thread pitch

1.50 mm

S1Connection no 1 wrench size

17.0 mm

KConnection no 1 thread length

8 mm

d2Connection no 1 thread pitch

1.00 mm

d1Connection 2, thread diameter

M14

Connection 2, type - male/female

Male

d2Connection no 1 thread diameter

10 mm

Connection no 1 type - male/female

Male

L2Connection no 1 center to end distance

9,5 mm

Manufacturer

Voss
