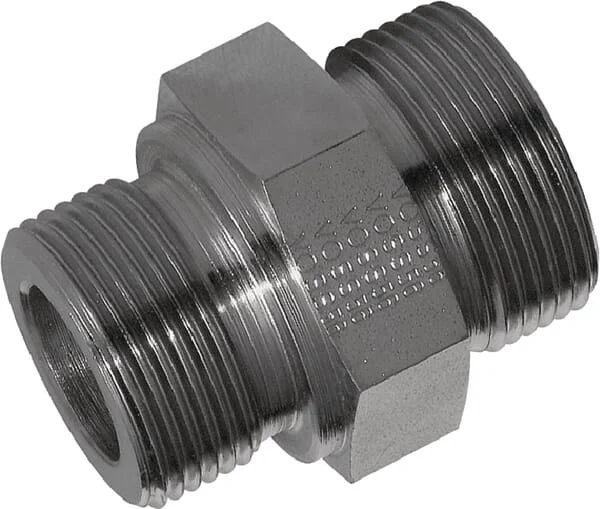

Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male
Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male
Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male
Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male

Voss - GES8SR12 - Cut Ring Coupling 08S M16x1,5 - BSP 1/2" - Male

€5.42

(Excl. VAT)

Price

(Excl. VAT)

€5.42

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
39 mm
Series
S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
8 mm
Inside diameter
5 mm
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Max. tightening torque
160 N·m
Connection no 1 diameter
8 mm
Connection no 1 hex size
26 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
S2Connection 2, wrench size
27.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/2 Inch
S1Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
14
KConnection no 1 thread length
14 mm
Connection no 1 thread diameter
M16
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
39 mm
L2Connection no 1 center to end distance
18 mm
Manufacturer
Voss
