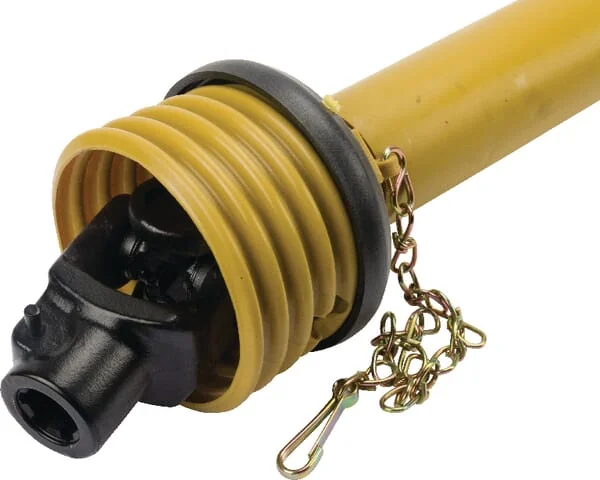

Walterscheid - W100E1010 - Drive Shaft Eco W100/1010 SD05

In stock - ready to ship

Order now for delivery between 23 May and 27 May

Free shipping

Pay Securely with

Price

(Excl. VAT)

€199.56

The Walterscheid W100E1010 eco drive shaft, series W100E, features a minimum length of 1010 mm and extends up to 1500 mm. It is equipped with an SD05 profile and standard 1 3/8" 6-spline yokes on both the tractor and implement sides. This robust drive shaft delivers 25 kW (34 hp) at 540 rpm and 39 kW (53 hp) at 1000 rpm, with corresponding torque values of 440 Nm at 540 rpm and 370 Nm at 1000 rpm. Weighing 13.5 kg, it is designed for reliable power transmission in agricultural and industrial machinery.

Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Brand

Walterscheid

Unit

Each

Length

1010 mm

Size code

W100E

Properties

Tractor side 1-3/8" (6) shaft collar kit Machinery side 1-3/8" (6) slide pin Lubrication interval: 8 hours CE marking awarded
