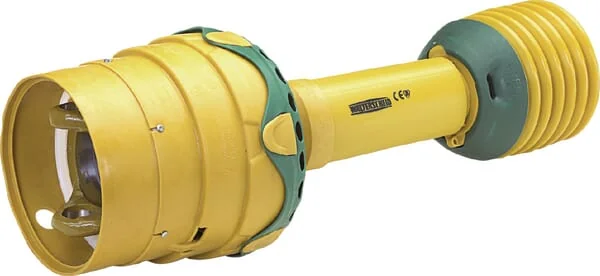

Walterscheid - WWE22801210OG - PTO Shaft Without Yokes WWE 2280 L: 1210mm
Walterscheid - WWE22801210OG - PTO Shaft Without Yokes WWE 2280 L: 1210mm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - WWE22801210OG - PTO Shaft Without Yokes WWE 2280 L: 1210mm

Walterscheid - WWE22801210OG - PTO Shaft Without Yokes WWE 2280 L: 1210mm

€753.59

(Excl. VAT)

Price

(Excl. VAT)

€753.59

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
1210 mm
Size code
WWE 2280
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Protection type
SD15
Max static torque
1600 N·m
Inner tube profile
OvGA
Outer tube profile
1G
Profile tube shape
Lemon
Locking type by machine side
Cross
Locking type by tractor side
Wide angle without UJ
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Cross joint length by tractor side - longer part
76 mm
Cross joint bush diameter by tractor side - longer part
22 mm
Manufacturer
Walterscheid
