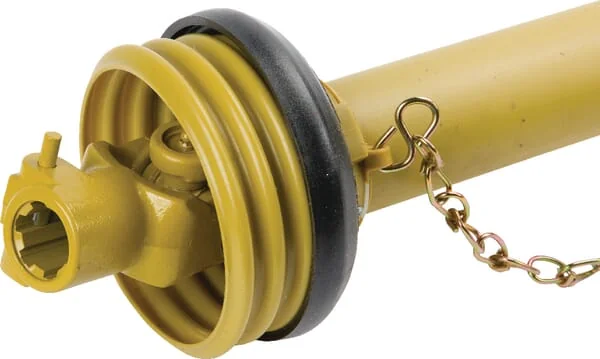

Walterscheid - WWE22801410 - Wide Angle PTO SD15
Walterscheid - WWE22801410 - Wide Angle PTO SD15
Walterscheid - WWE22801410 - Wide Angle PTO SD15
Walterscheid - WWE22801410 - Wide Angle PTO SD15
Walterscheid - WWE22801410 - Wide Angle PTO SD15
Walterscheid - WWE22801410 - Wide Angle PTO SD15

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Walterscheid - WWE22801410 - Wide Angle PTO SD15

Walterscheid - WWE22801410 - Wide Angle PTO SD15

€935.43

(Excl. VAT)

Price

(Excl. VAT)

€935.43

Product Description

The Walterscheid WWE22801410 is a genuine wide-angle PTO shaft from the SD15 series, designed for demanding agricultural and industrial applications. This robust power take-off shaft features a retracted length of 1010mm and an extended length of 1400mm, ensuring versatile fitment. It is equipped with 1 3/8" 6-spline connections on both the tractor and implement sides, facilitating broad compatibility. Capable of handling 30 kW (41 hp) at 540 rpm and 46 kW (63 hp) at 1000 rpm, this PTO shaft offers reliable power transmission without an integrated safety device. Its wide-angle design allows for continuous operation at angles up to 80 degrees, minimizing wear and maximizing efficiency.
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Product Details

Brand
Walterscheid
Part Numbers
wwe22801410
Unit
Each
Length
1410 mm
Size code
WWE 2280
Properties
Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at working angle 5° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Protection type
SD15
Long description
Wide-angle CV PTO drive shafts complete 80° series WWE 2280 / 80°
Application range
Slurry tank Crop sprayers Drawn hay processing machine
Max static torque
1850 N·m
Inner tube profile
OvGA
Outer tube profile
1G
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
2,7 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
40 mm
Outer tube large outside diameter
48 mm
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by tractor side - longer part
76 mm
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
22 mm
Manufacturer
Walterscheid
