Properties
Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Technical info

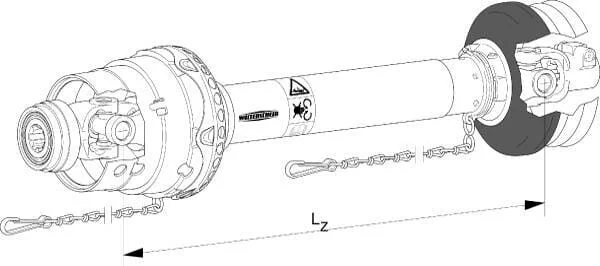

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection
Product details
PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions Tractor side 1-3/8" (6) collar fastening Machine side 1-3/8" (6) spring pin Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking Angle in continuous use maximum 25° Angle may be 80° only briefly Max. dyn. power 540 rpm: 28kW - 500Nm Max. dyn. power 1000 rpm: 44kW - 415Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length c.t.c. outer cross
Long description
Wide-angle PTO shafts 80° series WWE 2380
Application range
Slurry tank Crop sprayers Fertiliser spreader Hay press
Max static torque
2500 N·m
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
2,7 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
40 mm
Outer tube large outside diameter
48 mm
Cross joint length by machine side
75 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint bush diameter by tractor side
27 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by tractor side - longer part
91 mm
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
24 mm
