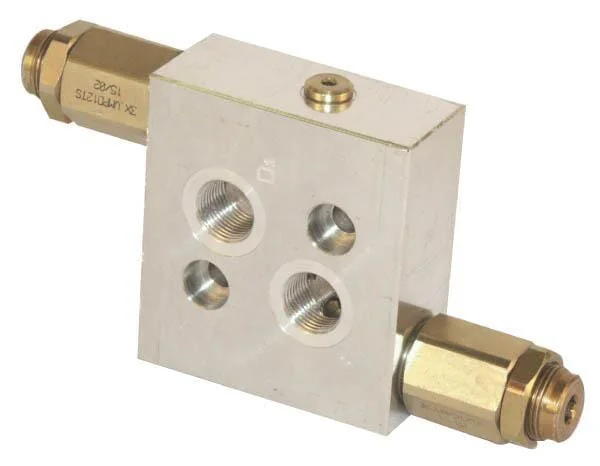

Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"
Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"
Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"
Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"
Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"
Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"

Walvoil - VADDF20001 - Relief Valve 20 A 12 OMT A 3/4"

€198.25

(Excl. VAT)

Price

(Excl. VAT)

€198.25

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Type
Spring-loaded differential valve
Unit
Each
Extra info
Suitable for mounting on; OMT SMT
Designed for
OMT SMT
Housing width
39 mm
Max. flow rate
110 l/min
Technical info
Protect a hydromotor against occurring pressure peaks as a result of external forces, which can cause an abrupt stop or the direct reversal of the direction of rotation. Intermittent switching time, quick responding.
AHousing length
120 mm
Adjustment type
Socket screw
BHousing height
120 mm
Connection type
Thread
Max working pressure
210 BAR
Connection thread type
BSP
Mounting holes diameter
10,5 mm
Adjustable pressure range
5-210 BAR
Connection thread diameter
3/4 Inch
Manufacturer
Walvoil
