Walvoil - VADDL05001 - Pressure Control Valve
Walvoil - VADDL05001 - Pressure Control Valve
Walvoil - VADDL05001 - Pressure Control Valve
Walvoil - VADDL05001 - Pressure Control Valve
Walvoil - VADDL05001 - Pressure Control Valve
Walvoil - VADDL05001 - Pressure Control Valve

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

Walvoil - VADDL05001 - Pressure Control Valve

Walvoil - VADDL05001 - Pressure Control Valve

€123.02

(Excl. VAT)

Price

(Excl. VAT)

€123.02

Product Description

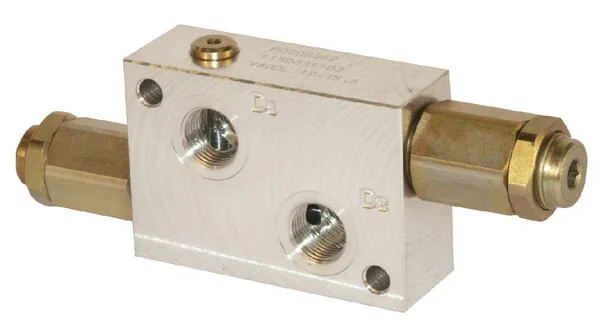

The Walvoil VADDL05001 is a genuine Walvoil direct-acting cartridge-type pressure relief valve, specifically designed for hydraulic systems requiring precise pressure control. This screw-adjustable valve offers a maximum operating pressure of 350 bar (5075 psi) and can handle a maximum flow rate of 50 L/min (13 US gpm). Constructed with a durable steel body and hardened, ground internal parts, it ensures reliable and long-lasting performance. The valve features NBR seals and is designed to fit a 7/8-14 UNF cartridge thread, making it ideal for protecting hydraulic circuits from overpressure.
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Type
Spring-loaded differential valve
Unit
Each
DTotal height
194 mm
CHousing width
30 mm
Housing height
65 mm
Max. flow rate
35 l/min
Technical info
Double-acting pressure relief valve protects a hydro motor against occurring pressure peaks as a result of external forces which can cause an abrupt stop or the direct reversal of the direction of rotation.
Adjustment type
Socket screw
BHousing length
90 mm
Connection type
Thread
Cartridge length
57,7 mm
Connections distance
90 mm
Max working pressure
210 BAR
Connection thread type
Inch
ZMounting holes diameter
8,5 mm
Adjustable pressure range
0-210 BAR
Connection thread diameter
3/8 Inch
Manufacturer
Walvoil
