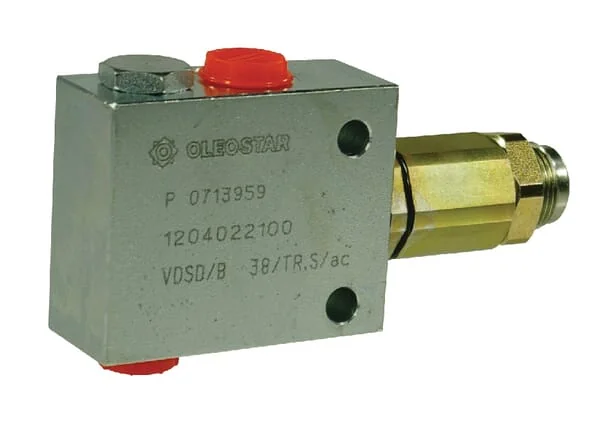

Walvoil - VDSDB20001ST - Pressure Relief Valve Steel
Walvoil - VDSDB20001ST - Pressure Relief Valve Steel
Walvoil - VDSDB20001ST - Pressure Relief Valve Steel
Walvoil - VDSDB20001ST - Pressure Relief Valve Steel
Walvoil - VDSDB20001ST - Pressure Relief Valve Steel
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walvoil - VDSDB20001ST - Pressure Relief Valve Steel

Walvoil - VDSDB20001ST - Pressure Relief Valve Steel

€140.02

(Excl. VAT)

Price

(Excl. VAT)

€140.02

Product Description

High pressure and medium volume flow For inline mounting To be used as sequential switching Version: individual parts in housing Works from D to C Free flow from C to D The pressure setting depends on the load in C No external leakage connection
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Unit
Each
Includes
Steel housing Differential controlled pressure relief valve Bypass check valve for free return
Housing width
40 mm
Housing height
90 mm
Housing length
90 mm
Max. flow rate
120 l/min
Adjustment type
Socket screw
Cartridge length
58 mm
Max working pressure
350 BAR
Mounting holes diameter
10,5 mm
Adjustable pressure range
100-350 BAR
Connection thread diameter
3/4 Inch
Connection 2, thread diameter
3/4 Inch
Manufacturer
Walvoil
