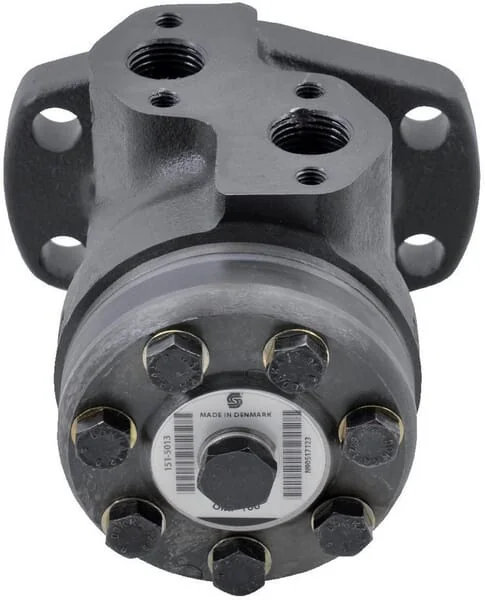

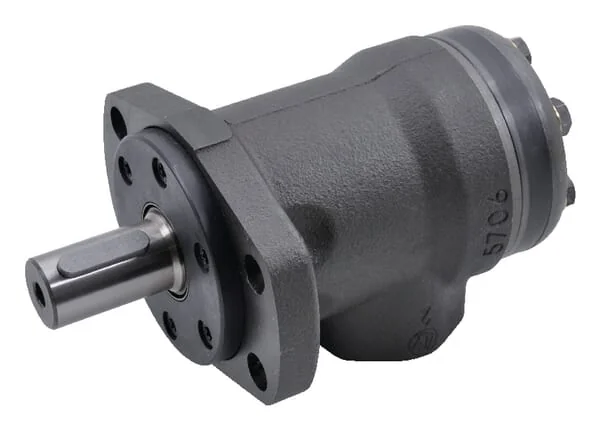

White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le
White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le
White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le
White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le
White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le
White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le

White - OMP4001515009 - Orbit Motor, Shaft Diameter 32.4-L,Le

€375.53

(Excl. VAT)

Price

(Excl. VAT)

€375.53

Product Details

Brand
White
Unit
Each
Benefits
Flexible
Max. power
6,5 kW
Properties
Robust and compact construction High axial and radial load carrying capacity of the axle High starting torque Pressure drop: P1 = operating pressure continuous, P2 = operating pressure intermittent, P3 = peak pressure
Shaft type
Straight parallel
Flange code
SAE-A
Displacement
400 cm³/rev
Flange shape
Oval
Rotor length
52 mm
Sealing type
Standard
Housing length
177,6 mm
Max. flow rate
60 l/min
Shaft diameter
32 mm
Technical info
Seal can be ordered under no. OMP 9-AFD 98 (older series on request) Equipped with leakage oil connection so that the product can easily be used in series with other engines, can also be used in closed-centre hydraulic systems; P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, P3= peak pressure
Application range
Wherever high torque and low speeds are required, e.g. for sweeping brushes, loader wagons, chain drives, spreaders, lawnmowers, winches, agricultural machinery, forestry machinery and construction machinery
Max pressure peak
130 BAR
Shaft thread type
Metric
Max rotation speed
155 r/min
Min rotation speed
5 r/min
Main port thread type
G
Max continuous torque
49 N·m
Shaft thread diameter
M8
Number of mounting holes
4
Main port thread diameter
1/2 Inch
Max. continous working pressure
60 BAR
Max intermittend working pressure
80 BAR
Manufacturer
White
