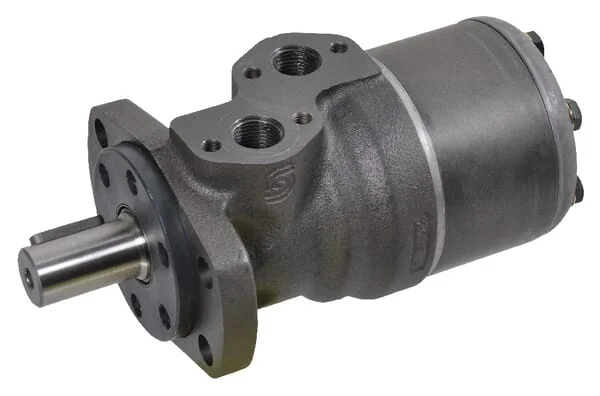

White - OMR2501516016 - Orbit Motor

White - OMR2501516016 - Orbit Motor

€390.09

(Excl. VAT)

Price

(Excl. VAT)

€390.09

Number of products

Product Description

With leak oil drain Roller design Wide shaft plain bearing Can be connected in series with other motors Suitable for use in closed systems Belongs to the series of medium-sized orbital motors

White

Product Details

Brand

Pros

Well suited for frequent reversing operations High efficiency High continuous pressure Long durability

Unit

Each

Max. power

10 kW

Shaft type

Straight parallel

Flange code

SAE-A

Displacement

250 cm³/rev

Flange shape

Oval

Rotor length

43,5 mm

Sealing type

Standard

Housing length

170,5 mm

Max. flow rate

60 l/min

Shaft diameter

25 mm

Max pressure peak

200 BAR

Max rotation speed

240 r/min

Min rotation speed

5 r/min

Product description

Wherever high torque and low rotational speeds are required, e.g: Gritters Loader wagons Bottom chain drives Augers Balers Winches -Communal/agricultural/forestry/construction machines

Main port thread type

G

Max continuous torque

300 N·m

Drain port thread type

G

Number of mounting holes

4

Main port thread diameter

1/2 Inch

Drain port thread diameter

1/4 Inch

Max. continous working pressure

80 BAR

Max intermittend working pressure

110 BAR

Manufacturer

White

Similar items you might like

White - OMR3151510246 - Orbit Motor, Shaft Diameter 32.2H, Drain
White
€421.84
White - OMR3151516007 - Orbit Motor, Shaft Diameter 32.4H, Drain
White
€413.89
White - OMR3151516017 - Orbit Motor, Shaft Diameter 25.4-L, Drain
White
€416.63
White - OMR3151516467 - Orbit Motor OMR315- Diameter 25 - Brake
White
€799.47

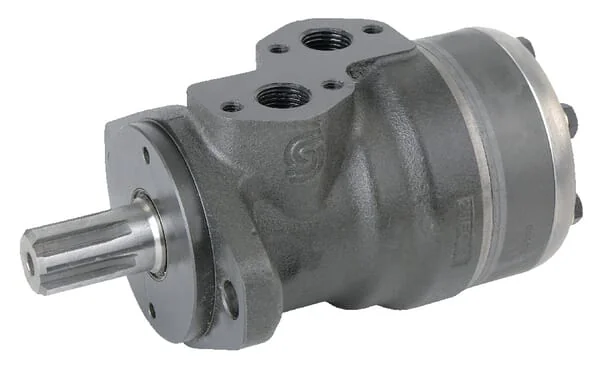

White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
