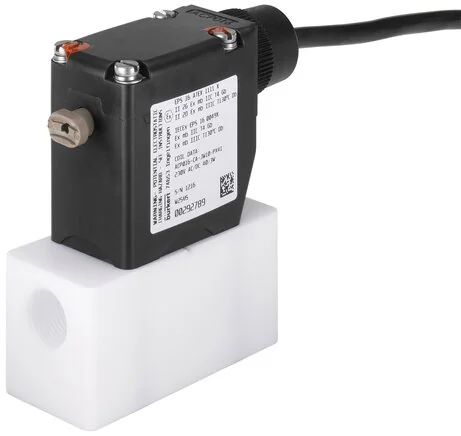

Burkert - 0121-E-04,0-CC-TE-GM83-024/DC--151715 - 3/2-Way Solenoid Valve for Aggressive Media

SKU: burkert-0121-e-04-0-cc-te-gm83-024-dc-151715

Burkert - 0121-E-04,0-CC-TE-GM83-024/DC--151715 - 3/2-Way Solenoid Valve for Aggressive Media

€998.20€853.16 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€998.20

Brand
Burkert
CE Mark
Yes
AC Voltage
No
DC Voltage
Yes
Rated Power (W)
8
Mode Of Operation
E - Mischventil - in Ruhestellung Druckanschluss 1 (P1/NC) geschlossen,Druckanschluss 3 (P2/NO) nach Arbeitsanschluss 2 (A/OUT) geöf
Valve Seat Material
PTFE (Polytetrafluorethylen)
Material - Seal Seat
FFKM (Perfluorkautschuk)
Line Connection 2 Type
Innengewinde
Nominal Pressure Min (bar)
0
Sealing To Outside Material
FFKM (Perfluorkautschuk)
Seat Seal Material Category
Elastomere
Medium Temperature Max (°C)
90
Medium Temperature Min (°C)
-10
Ambient Temperature Max (°C)
50
Line Connection 2 Thread Type
G
Surface Temperature Max (°C)
155
Main Valve Nominal Size 1 (inch)
5/32
Voltage Max. / Rated Voltage (V)
24
Voltage Min. / Rated Voltage (V)
24
Main Valve Nominal Size 1 (P) (mm)
4
Main Valve Nominal Size 3 (R) (mm)
4
Nominal Pressure Max (Liquid) (bar)
1
Line Connection 2 Thread Designation
3/8
Main Valve Material, Media-contacting
PTFE (Polytetrafluorethylen)
Manufacturer
Burkert
